Security Indicator Light Assembly: Installation

  1. INSTALL TELLTALE LIGHT ASSEMBLY
    1. Engage the 4 claws to install the telltale light assembly.

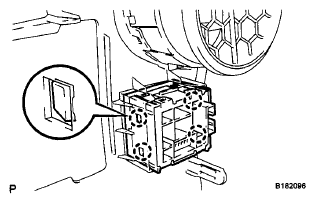

      Fig 1: Identifying Telltale Light Assembly And Claws
      G06036556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
