Charging System (2ZR-FE): Generator: Components

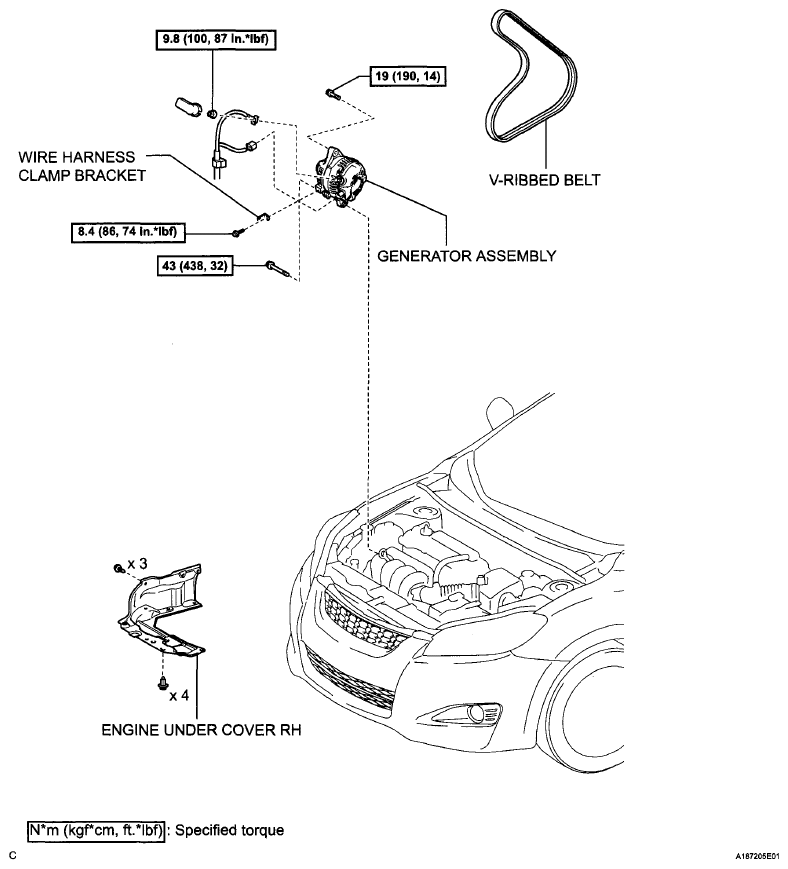

Fig 1: Generator Replacement Components With Torque Specifications (1 Of 2)
G06036068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

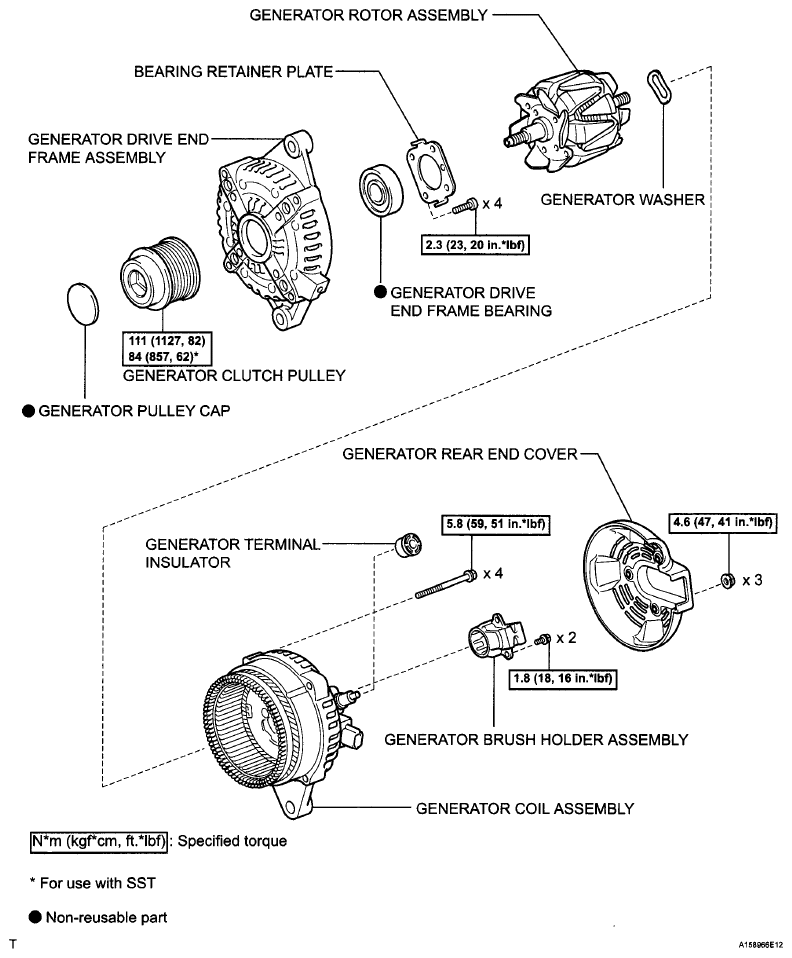

Fig 2: Generator Replacement Components With Torque Specifications (2 Of 2)
G06036069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
