Front Speed Sensor: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL
REMOVE FRONT FENDER LINER LH
REMOVE FRONT SPEED SENSOR
1. Disconnect the speed sensor connector and clamp.

  Fig 1: Locating Speed Sensor Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and separate the speed sensor harness from the body and shock absorber assembly.

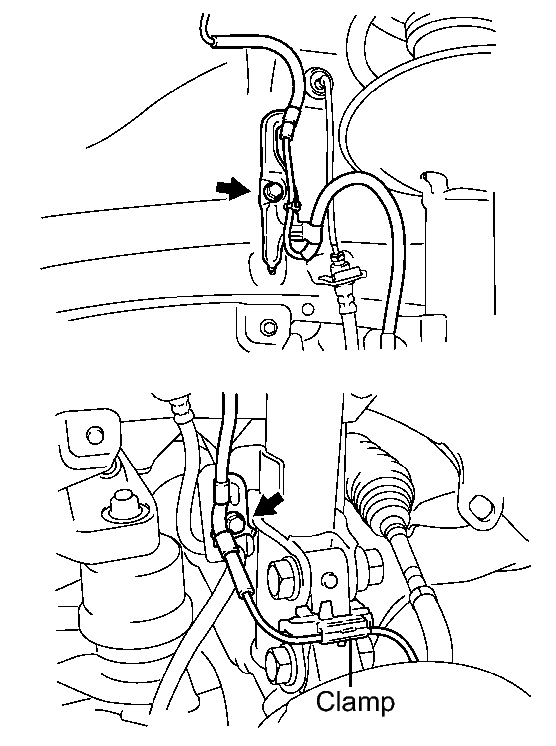

  Fig 2: Locating Speed Sensor Harness Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the clamp from the steering knuckle.
4. Remove the bolt and the front speed sensor.

  Fig 3: Locating Front Speed Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Prevent foreign matter from attaching to the sensor tip.
  - Clean the installation hole and surface for the speed sensor every time the speed sensor is removed.
