Headlight Assembly: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION (for HID Headlight)
Refer to PRECAUTION
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE FRONT BUMPER ASSEMBLY
Refer to REMOVAL
REMOVE HEADLIGHT ASSEMBLY
1. Remove the 2 bolts and screw.

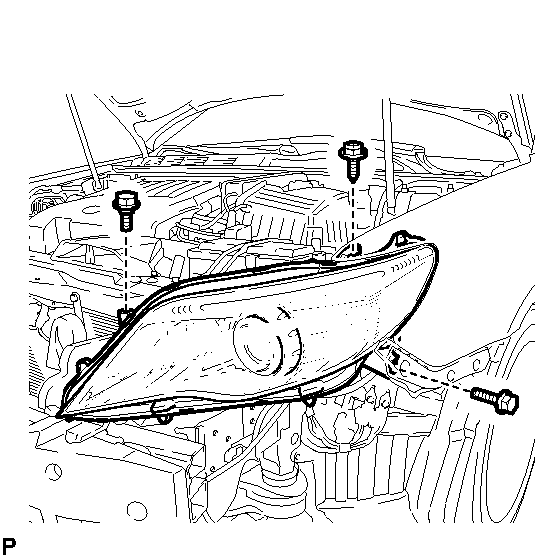

  Fig 1: Locating Headlight Assembly Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect each connector and remove the headlight assembly.
