License Plate Light Assembly: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
Refer to REMOVAL
REMOVE LICENSE PLATE LIGHT ASSEMBLY
1. Disengage the 2 claws.

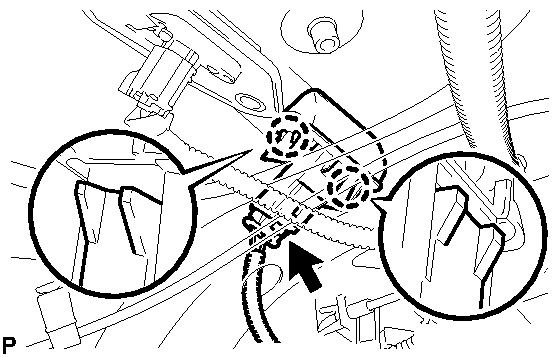

  Fig 1: Locating License Plate Light Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector to remove the license plate light assembly.
3. Remove the license plate light packing.

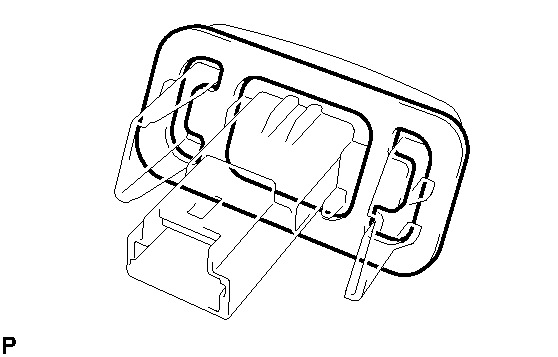

  Fig 2: View Of License Plate Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not reuse the removed packing. Be sure to install a new license plate light packing to prevent water ingress.
