CHECK 4WD CONTROL ECU

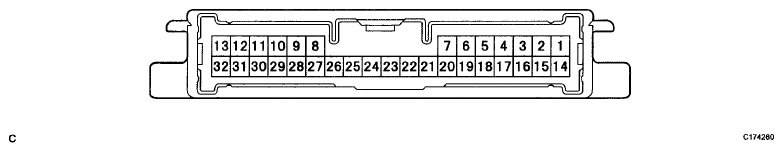

Fig 1: Identifying 4WD Control ECU Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the voltage and resistance of the connector.

TERMINAL DESCRIPTION CHART

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
14 (CANH) - 16 (CANL)	CAN communication	Ignition switch off	54 to 69 Ω
23 (GND) - Body ground	Ground	Always	Below 1 Ω
11 (IG1) - 23 (GND)	Power source voltage	Ignition switch ON	10 to 14 V
13 (SLC+) - 32 (SLC-)	4WD linear solenoid signal	Ignition switch ON	Pulse generation (See waveform 1 b)
9 (BSLC) - 23 (GND)	Power source voltage	Ignition switch ON	10 to 14 V

If the result is not as specified, the 4WD control ECU may have a malfunction.

Using an oscilloscope, check the waveform 1.

Waveform 1 (Reference)

WAVEFORM REFERENCE CHART

Terminal Name	Content
Tester Range	5 V/DIV, 2 msec./DIV.
Condition	Engine stop, ignition switch ON

Fig 2: Waveform 1 Graph
