TRANSFER CASE FRONT OIL SEAL (for RH Side): Components

WARNING: This page is about a different variant/trim than selected.

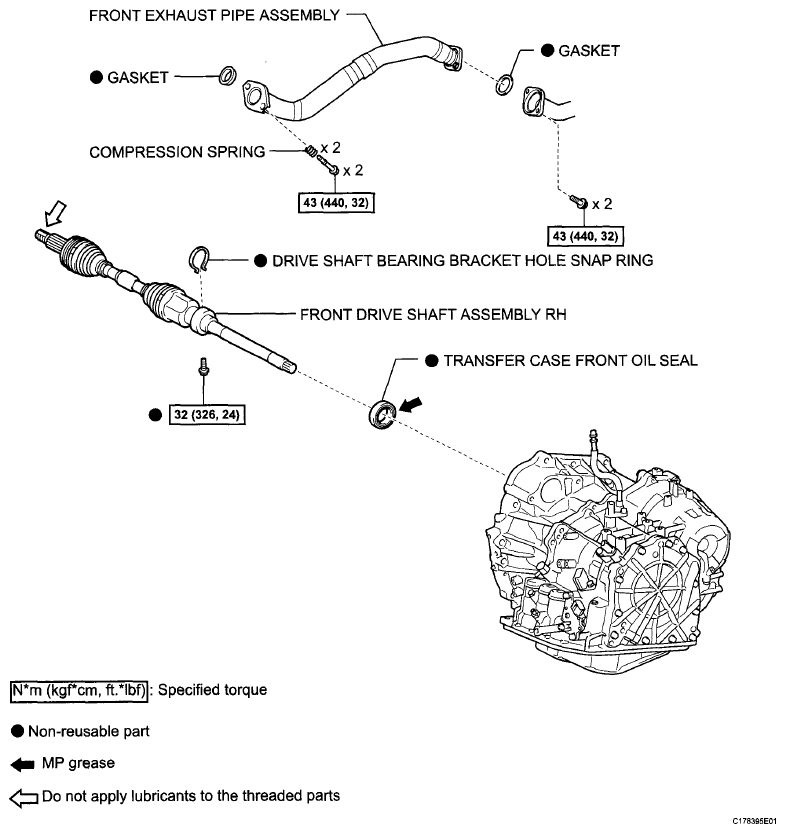

Fig 1: Transfer Case Front Oil Seal Replacement Components With Torque Specifications (For RH Side)
G06045842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
