Network Gateway Ecu: Components

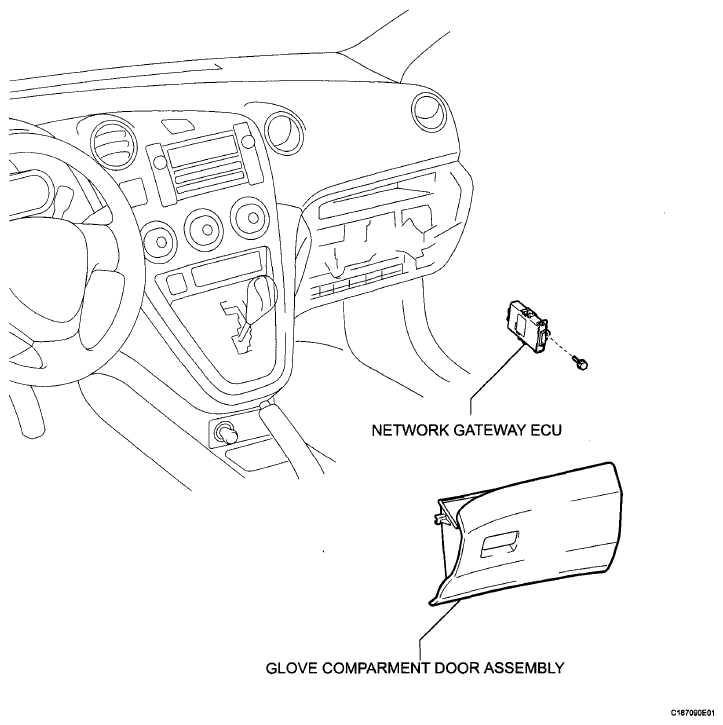

Fig 1: Identifying Network Gateway ECU And Glove Compartment Door Assembly
G06036306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
