Cruise Control Main Switch: Installation

INSTALL CRUISE CONTROL MAIN SWITCH
1. Engage the pin and install the cruise control main switch as shown in the illustration.
2. Connect the connector.

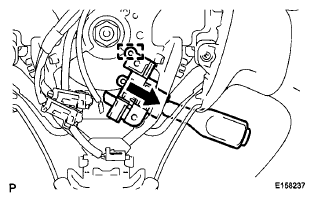

  Fig 1: Installing Cruise Control Main Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 screws.

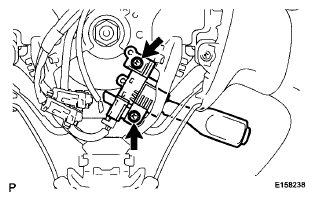

  Fig 2: Locating Cruise Control Main Switch Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING PAD (See INSTALLATION )
INSTALL LOWER NO. 3 STEERING WHEEL COVER (See INSTALLATION )
INSTALL LOWER NO. 2 STEERING WHEEL COVER (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT STEERING PAD (See INSTALLATION )
INSPECT SRS WARNING LIGHT
1. Inspect the SRS warning light (See DIAGNOSIS SYSTEM ).
