Inspection Procedure

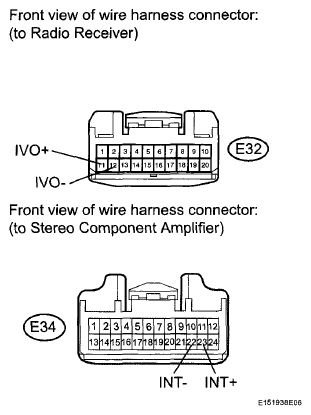

- CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)
- Disconnect the radio receiver connector and the stereo component amplifier connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
RESISTANCE SPECIFIED CONDITIONTester Connection Condition Specified Condition E32-11 (IVO+) - E34-23 (INT+) Always Below 1 Ω E32-12 (IVO-) - E34-22 (INT-) Always Below 1 Ω E32-11 (IVO+) - Body ground Always 10 kΩ or higher E32-12 (IVO-) - Body ground Always 10 kΩ or higher Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
