Cellular Phone Voice Circuit between Radio Receiver and Stereo Component Amplifier: Wiring Diagram

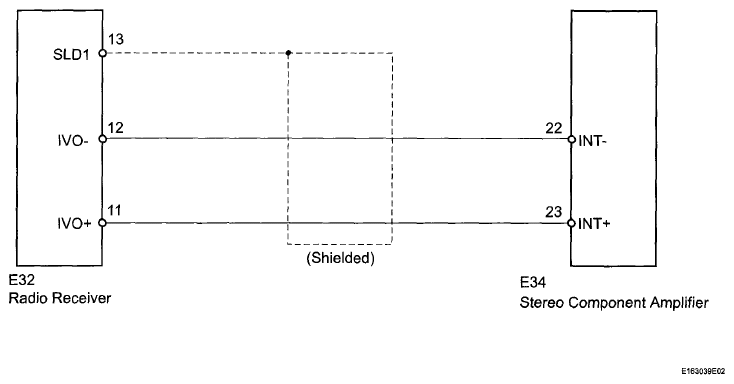

Fig 1: Radio Receiver And Stereo Component Amplifier - Wiring Diagram
G06035735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
