Microphone Circuit between Microphone and Radio Receiver: Wiring Diagram

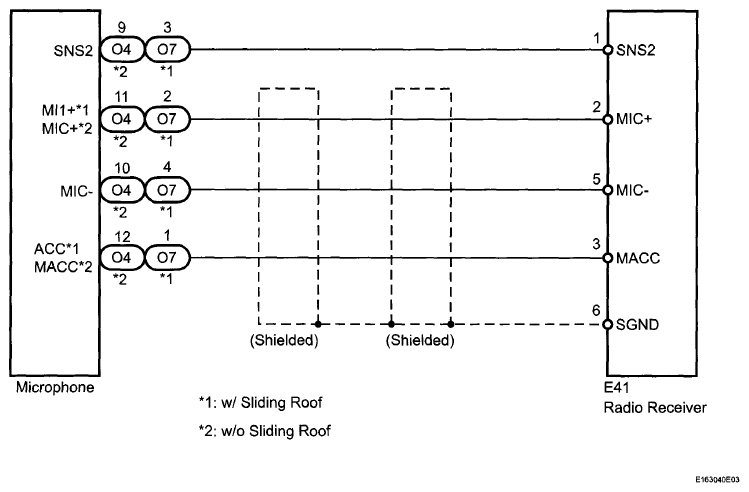

Fig 1: Microphone And Radio Receiver - Wiring Diagram
G06035737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
