Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier: Wiring Diagram

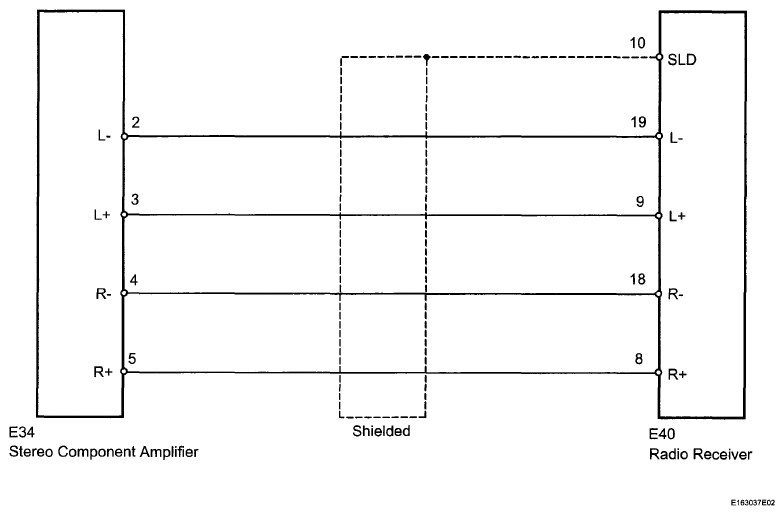

Fig 1: Sound Signal Circuit - Wiring Diagram
G06035721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
