Navigation Antenna: Installation

  1. INSTALL NAVIGATION ANTENNA ASSEMBLY
    1. Install the navigation antenna assembly with the 2 screws.

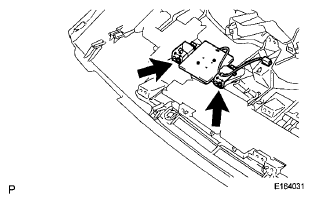

      Fig 1: Locating Navigation Antenna Assembly And Screws
      G06035998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL HEATER TO REGISTER DUCT ASSEMBLY  (See REASSEMBLY )
  3. INSTALL DEFROSTER NOZZLE ASSEMBLY  (See INSTALLATION )
  4. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY

    HINT:

    Refer to the procedures from Install Upper Instrument Panel Sub-assembly (See INSTALLATION ).
