Rear Wiper Motor: Components

Fig 1: Identifying Rear Wiper Motor Components (1 Of 2)
G06038580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

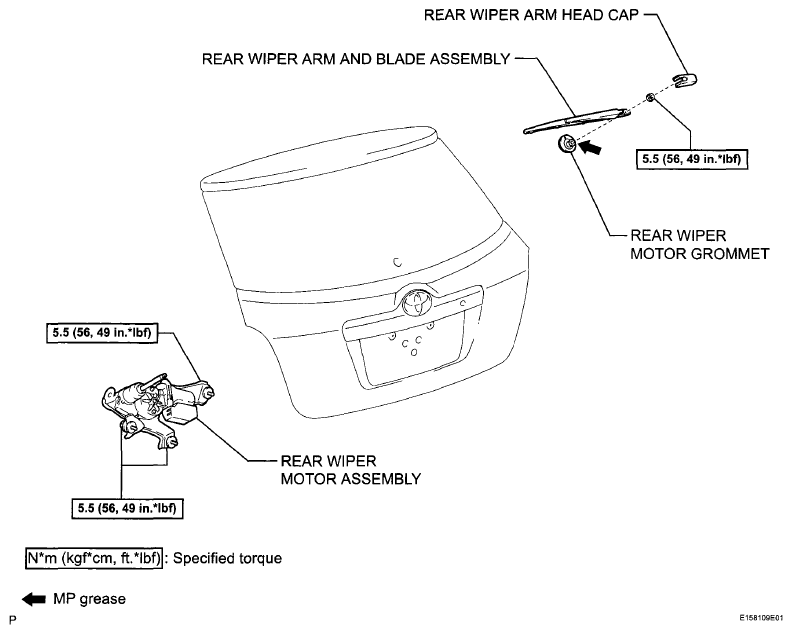

Fig 2: Rear Wiper Motor Replacement Components With Torque Specifications (2 Of 2)
G06038581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
