WASHER MOTOR (for Front Side): Components

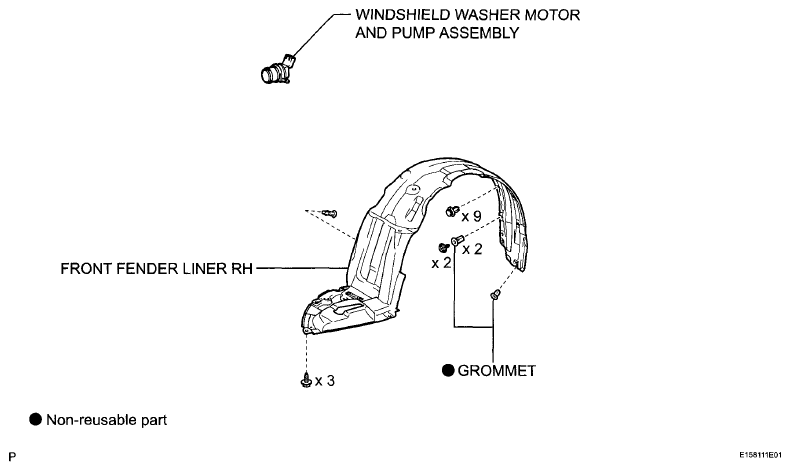

Fig 1: Identifying Washer Motor (For Front Side) Components
G06038626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
