Washer Level Warning Switch: Removal

  1. REMOVE FRONT WHEEL RH
  2. REMOVE FRONT FENDER LINER RH (See  REMOVAL  )
  3. DRAIN WASHER FLUID
    1. Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.

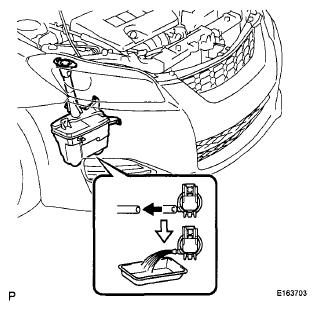

    Fig 1: Draining Washer Fluid
    G06038629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE LEVEL WARNING SWITCH ASSEMBLY
    1. Disconnect the connector.
    2. Remove the level warning switch assembly.
    Fig 2: Locating Level Warning Switch Assembly Connector
    G06038652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
