Inspection Procedure

  1. CHECK POWER WINDOW SWITCH (POWER SOURCE)
    1. Disconnect the power window switch (rear RH side) connector.
    2. Measure the voltage according to the value(s) in the table below.

    Standard Voltage

    VOLTAGE SPECIFIED CONDITION

    Tester Connection Switch Condition Specified Condition
    J1-3 (B) - Body ground Ignition switch ON 11 to 14 V

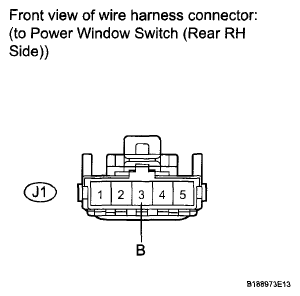

    Fig 1: Identifying J1 Power Window Switch (Rear RH Side) Connector
    G06038094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  2. INSPECT POWER WINDOW SWITCH (REAR RH SIDE)
    1. Remove the power window switch (rear RH side) (See REAR POWER WINDOW SWITCH ).
    2. Measure the resistance according to the value(s) in the table below.

    Standard Resistance

    RESISTANCE SPECIFIED CONDITION

    Tester Connection Switch Condition Specified Condition
    1 (D) - 2 (SD)
    3 (B) - 4 (U)
    UP Below 1 Ω
    1 (D) - 2 (SD)
    4 (U) - 5 (SU)
    OFF Below 1 Ω
    2 (SD) - 3 (B)
    4 (U) - 5 (SU)
    DOWN Below 1 Ω

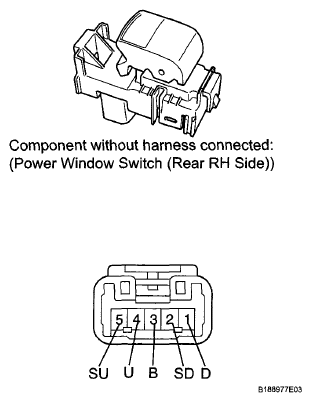

    Fig 2: Identifying Terminals Of Power Window Switch (Rear RH Side) Connector
    G06015904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE POWER WINDOW SWITCH (REAR RH SIDE) (See  REAR POWER WINDOW SWITCH  )

    OK: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (SWITCH (REAR RH) - MOTOR (REAR RH))
    1. Disconnect the power window regulator motor assembly (rear RH side) connector.
    2. Measure the resistance according to the value(s) in the table below.

    Standard Resistance

    RESISTANCE SPECIFIED CONDITION

    Tester Connection Condition Specified Condition
    J1-4 (U) - J3-1 (U) Always Below 1 Ω
    J1-1 (D) - J3-2 (D) Always Below 1 Ω
    J1-4 (U) - Body ground Always 10 kΩ or higher
    J1-1 (D) - Body ground Always 10 kΩ or higher

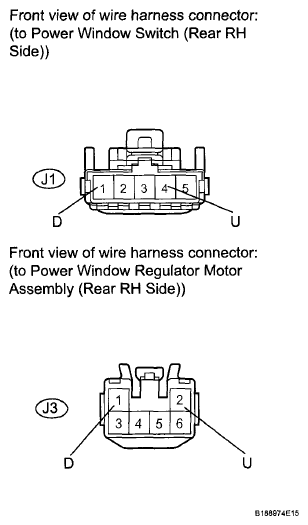

    Fig 3: Identifying J1 Power Window Switch (Rear RH Side) And J3 Power Window Regulator Motor Assembly Connectors
    G06038096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  4. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR RH SIDE)
    1. Remove the power window regulator motor assembly (rear RH side) (See REMOVAL ).
    2. Check power window regulator motor operation:
      1. Apply battery voltage to connector terminals 1 and 2.
        NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
      2. Check that the motor gear rotates smoothly as follows.

      OK

      MEASUREMENT CONDITION REFERENCE CHART

      Measurement Condition Specified Condition
      Battery positive (+) → 1
      Battery negative (-) → 2
      Motor gear rotates counterclockwise
      Battery positive (+) → 2
      Battery negative (-) → 1
      Motor gear rotates clockwise
    3. Check PTC operation:
    NOTE: This check must be performed with the power window regulator and door glass installed on the vehicle.

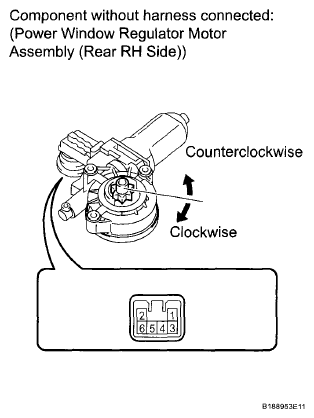

    Fig 4: Checking Power Window Regulator Motor Operation
    G06038097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the power window regulator motor assembly (rear RH side) (See INSTALLATION ).
    2. Connect an electrical tester DC 400 A probe to the wire harness of terminal 1.
      NOTE: Match the arrow mark of the probe with the direction of the current flow.
    3. Fully close the door glass by pulling up the power window switch. Wait for approximately 60 seconds.
    4. Continue to pull up the power window switch and measure how long it takes for the electrical current to change from a range of 16 to 28 A to approximately 1 A (current shut-off inspection).

      Standard: 4 to 90 seconds

    5. Wait for 60 seconds after the previous step, and then push down the power window switch (rear RH side).

      OK: The rear RH side window goes down  .

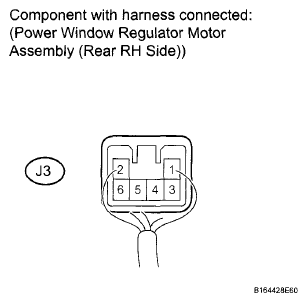

      Fig 5: Identifying J3 Power Window Regulator Motor Assembly (Rear RH Side) Connector
      G06038098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR RH SIDE)

      OK: Go to Next Step

  5. CHECK HARNESS AND CONNECTOR (MASTER SWITCH - SWITCH (REAR RH))
    1. Disconnect the power window master switch connector.
    2. Disconnect the power window switch (rear RH side) connector.
    3. Measure the resistance according to the value(s) in the table below.

    Standard Resistance

    RESISTANCE SPECIFIED CONDITION

    Tester Connection Condition Specified Condition
    I3-10 (U) - J1-5 (SU) Always Below 1 Ω
    I3-18 (D) - J1-2 (SD) Always Below 1 Ω
    I3-10 (U) - Body ground Always 10 kΩ or higher
    I3-18 (D) - Body ground Always 10 kΩ or higher
    Fig 6: Identifying I3 Power Window Master Switch And J1 Power Window Switch (Rear RH Side) Connectors
    G06015882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE POWER WINDOW MASTER SWITCH  (See POWER WINDOW MASTER SWITCH )
