Parts Location

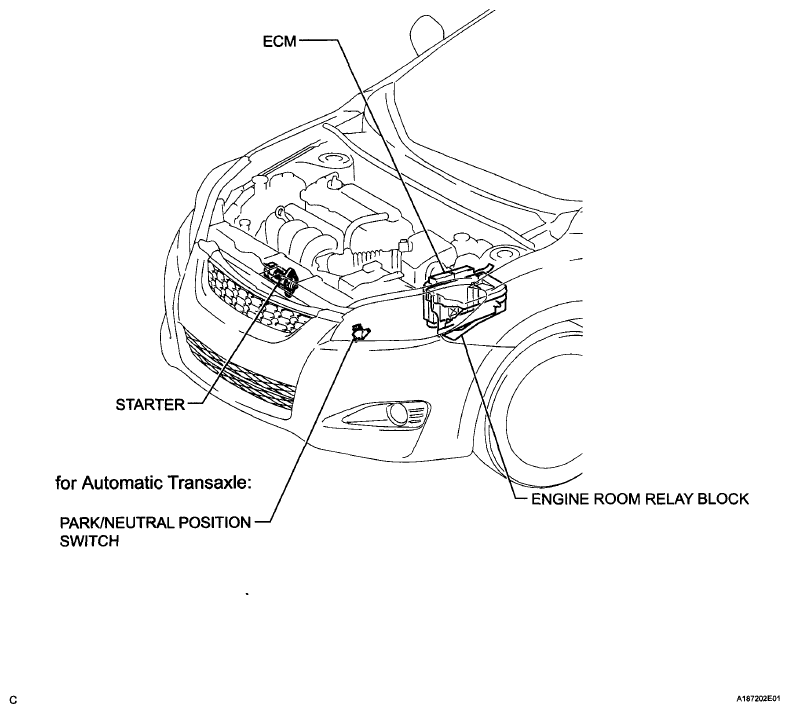

Fig 1: Identifying Starting System Parts Location (Automatic Transaxle)
G06042960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

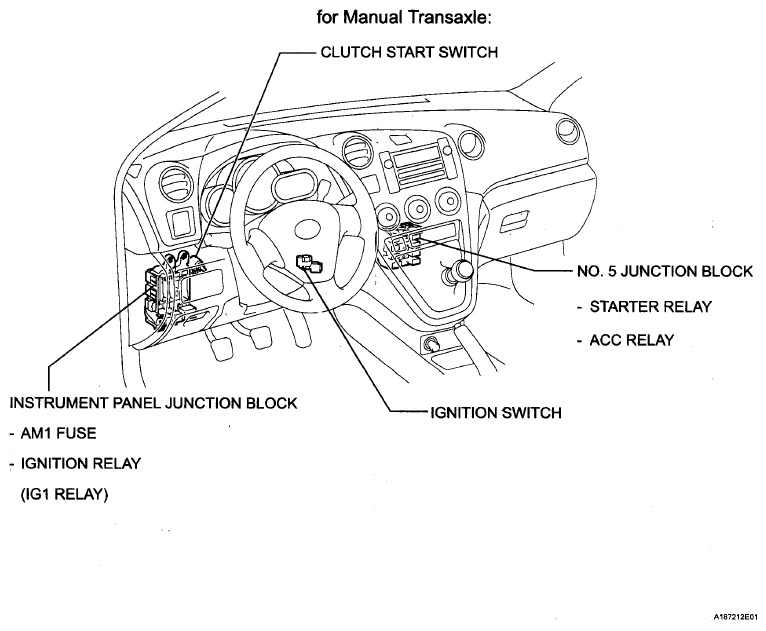

Fig 2: Identifying Starting System Parts Location (Manual Transaxle)
G06042961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
