Inspection Procedure

HINT:

Read freeze frame data using the Techstream. Freeze frame data record the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data, from the time the malfunction occurred.

1. PERFORM ACTIVE TEST USING TECHSTREAM (STARTER SIGNAL)
   1. Connect to the Techstream the DLC3.
   2. Turn the ignition switch to ON.
   3. Turn the Techstream on.
   4. Enter the following menus: Powertrain / Engine and ECT / Data List / Starter Signal.
   5. Read the value displayed on the Techstream when the ignition switch is turned to the ON and START positions.

      OK

      IGNITION SWITCH POSITION CHART



      Ignition Switch Position	Starter Signal
      Ignition switch ON	OFF
      START	ON

      Result

      RESULT CHART



      Result	Proceed to
      OK	A
      NG (for Automatic transaxle models)	B
      NG (for Manual transaxle models)	C

      B: Go to step 2

      C: Go to step  4

      A: CHECK FOR INTERMITTENT PROBLEMS  (See CHECK FOR INTERMITTENT PROBLEMS )

2. READ VALUE USING TECHSTREAM (STARTER SIGNAL)
   1. Disconnect the park/neutral position switch connector.
   2. Connect the Techstream to the DLC3.
   3. Turn the ignition switch to ON.
   4. Turn the Techstream on.
   5. Enter the following menus: Powertrain / Engine and ECT / Data List / Starter Signal.
   6. Read the value displayed on the Techstream when the ignition switch is turned to ON.

      Result

      RESULT CHART



      Starter Signal	Proceed to
      ON	A
      OFF	B

   7. Reconnect the park/neutral position switch.

      B: REPLACE PARK/NEUTRAL POSITION SWITCH  (See REMOVAL )

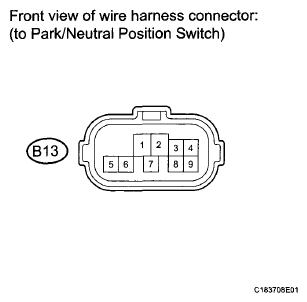

      Fig 1: Identifying B13 Park/Neutral Position Switch Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      A: Go to next step

3. INSPECT ECM (STA TERMINAL VOLTAGE)
   1. Disconnect the ECM connector.

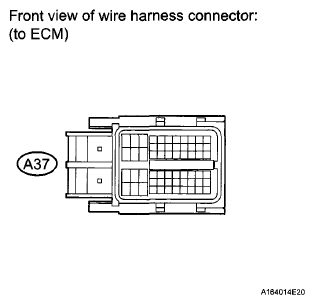

      Fig 2: Identifying A37 ECM Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect the park/neutral position switch connector.
   3. Turn the ignition switch to ON.
   4. Measure the voltage according to the value(s) in the table below.
      Fig 3: Identifying B13 Park/Neutral Position Switch Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Switch Condition	Specified Condition	Proceed to
      B13-5 - Body ground	Ignition switch ON	11 to 14 V	A
      		Below 1.5 V	B

   5. Reconnect the park/neutral position switch connector.
   6. Reconnect the ECM connector.

      B: REPLACE ECM  (See REMOVAL )

      A: REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - PARK/NEUTRAL POSITION SWITCH - ST RELAY)

4. READ VALUE USING TECHSTREAM (STARTER SIGNAL)
   1. Disconnect the clutch pedal switch connector.
   2. Connect the Techstream to the DLC3.
   3. Turn the ignition switch to ON.
   4. Turn the Techstream on.
   5. Enter the following menus: Powertrain / Engine and ECT / Data List / Starter Signal.
   6. Read the value displayed on the Techstream when the ignition switch is turned to ON.

      Result

      RESULT CHART



      Starter Signal	Proceed to
      ON	A
      OFF	B

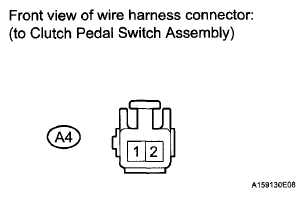

      Fig 4: Identifying A4 Clutch Pedal Switch Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   7. Reconnect the clutch pedal switch connector.

      B: Go to step  6

      A: Go to next step

5. INSPECT ECM (STA TERMINAL VOLTAGE)
   1. Disconnect the ECM connector.
      Fig 5: Identifying A37 ECM Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect the clutch pedal switch connector.
   3. Turn the ignition switch to ON.
   4. Measure the voltage according to the value(s) in the table below.
      Fig 6: Identifying A4 Clutch Pedal Switch Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Switch Condition	Specified Condition	Proceed to
      A4-1 - Body ground	Ignition switch ON	11 to 14 V	A
      		Below 1.5 V	B

   5. Reconnect the clutch pedal switch connector.
   6. Reconnect the ECM connector.

      B: REPLACE ECM  (See REMOVAL )

      A: REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - CLUTCH PEDAL SWITCH - ST RELAY)

6. INSPECT IGNITION SWITCH ASSEMBLY
   1. Inspect the ignition switch assembly (See INSPECTION ).

      NG: REPLACE IGNITION SWITCH ASSEMBLY  (See REMOVAL )

      OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (CLUTCH PEDAL SWITCH - IGNITION SWITCH ASSEMBLY - ECM)
