DTC P2195 Oxygen (A/F) Sensor Signal Stuck Lean (Bank 1 Sensor 1); DTC P2196 Oxygen (A/F) Sensor Signal Stuck Rich (Bank 1 Sensor 1): Wiring Diagram

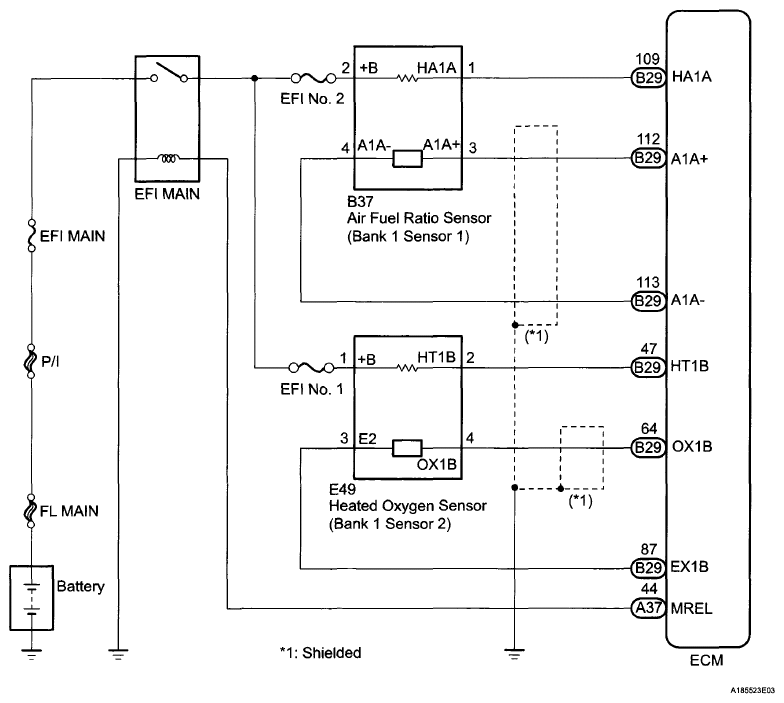

Fig 1: Oxygen (A/F) Sensor Signal Stuck Lean (Bank 1 Sensor 1) - Wiring Diagram
G06040490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
