Removal (To 12/2010): Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
HINT:

Refer to REMOVAL .
REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY See step 2
REMOVE VALVE BODY OIL STRAINER ASSEMBLY See step 3
REMOVE ATF TEMPERATURE SENSOR ASSEMBLY
1. Disconnect the connector.

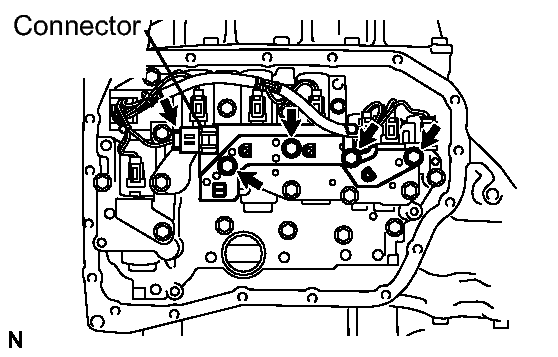

  Fig 1: Locating ATF Temperature Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bolts, ATF temperature sensor assembly and clamp from the valve body.
3. Remove the O-ring from the ATF temperature sensor assembly.

  Fig 2: Identifying O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
