Removal (To 12/2010): Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
HINT:

Refer to REMOVAL .
REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY See Step 2
REMOVE VALVE BODY OIL STRAINER ASSEMBLY See step 3
REMOVE TRANSMISSION VALVE BODY ASSEMBLY See step 4
REMOVE SPEED SENSOR
1. Disconnect the connector.
2. Remove the 2 bolts and speed sensor from the valve body.

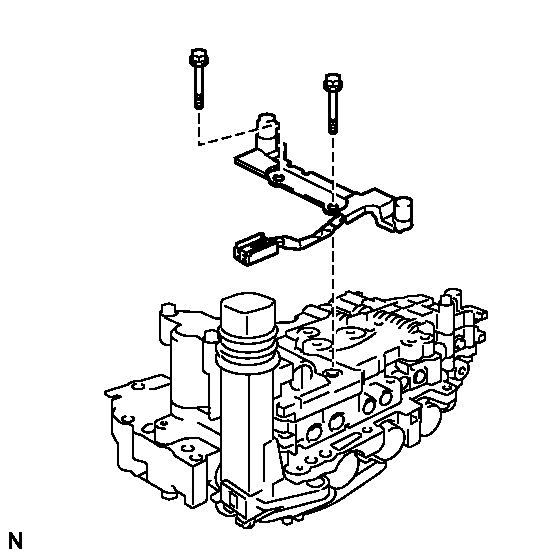

  Fig 1: Identifying Bolts And Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
