Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TRANSMISSION WIRE
1. Coat the O-ring with ATF.

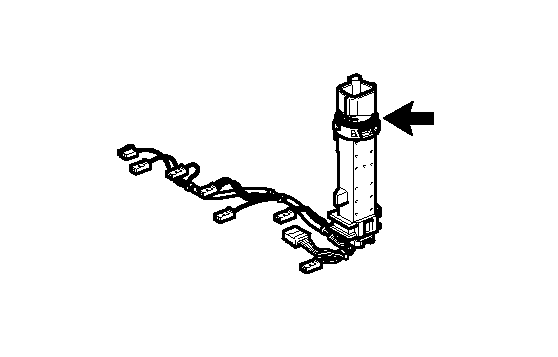

  Fig 1: Locating O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat the bolt with ATF.
3. Install the transmission wire and lock plate to the valve body with the bolt.

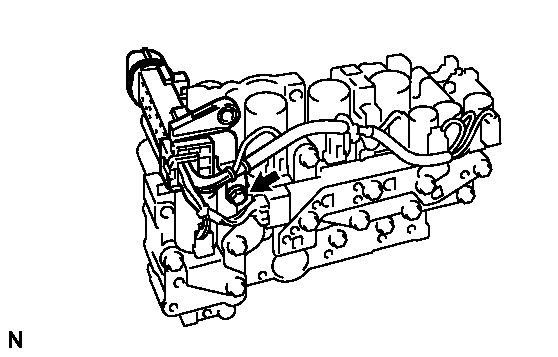

  Fig 2: Locating Transmission Wire Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
4. Install the transmission wire to the clamp.

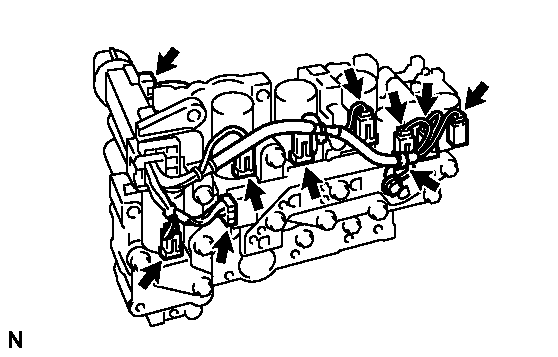

  Fig 3: Locating Transmission Wire Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the 9 transmission wire connectors.
INSTALL TRANSMISSION VALVE BODY ASSEMBLY See step 2
INSTALL VALVE BODY OIL STRAINER ASSEMBLY See step 3
INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY See step 4
INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
HINT:

See step 10.
