Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL MANUAL VALVE
1. Coat the manual valve with ATF and install it to the transmission valve body assembly.

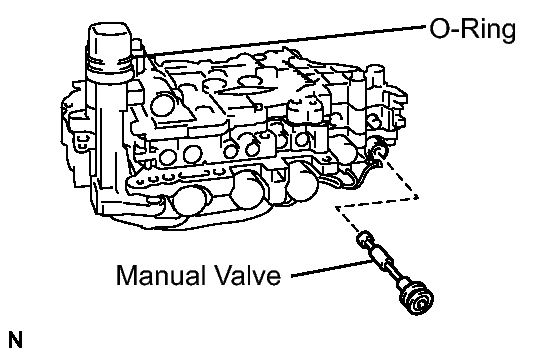

  Fig 1: Identifying O-ring And Manual Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION VALVE BODY ASSEMBLY
1. Coat the O-ring of the transmission wire with ATF.
2. Confirm that the manual valve lever is positioned as shown in the illustration and install the transmission valve body assembly to the transaxle case with the 11 bolts.

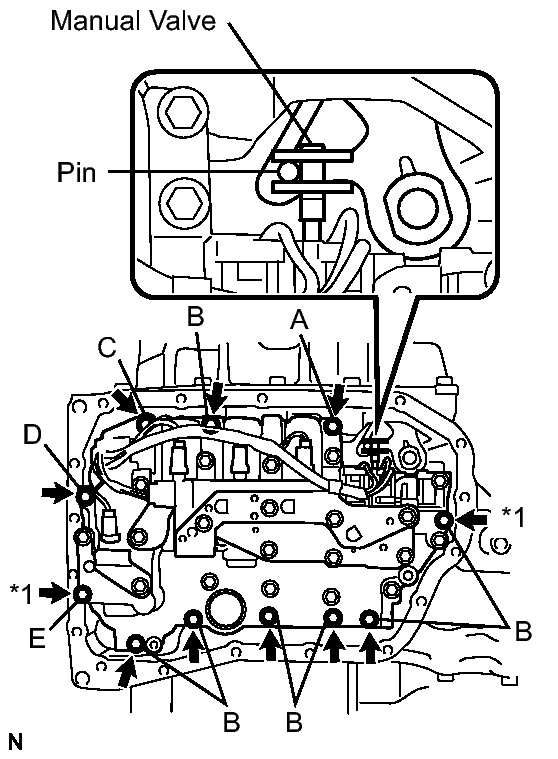

  Fig 2: Locating Transmission Valve Body Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

  Bolt length

  Bolt A

  25 mm (0.98 in.)

  Bolt B

  30 mm (1.18 in.)

  Bolt C

  35 mm (1.38 in.)

  Bolt D

  45 mm (1.77 in.)

  Bolt E

  55 mm (2.17 in.)
  NOTE:
  - When installing the transmission valve body assembly, be careful not to allow the transmission revolution sensor and transaxle case to interfere with each other.
  - Be sure to insert the pin of the manual valve lever into the groove on the end of the manual valve.
  - First, temporarily tighten the bolts marked by (*1) in the illustration because they are positioning bolts.
INSTALL VALVE BODY OIL STRAINER ASSEMBLY
1. Coat a new O-ring with ATF and install it to the valve body oil strainer assembly.

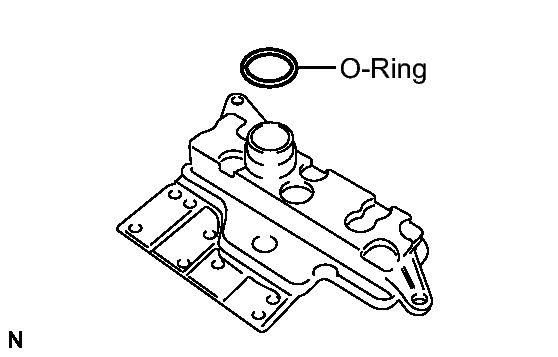

  Fig 3: Identifying O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Ensure that the O-ring is not twisted or pinched.
2. Install the valve body oil strainer assembly to the transmission valve body assembly with the 2 bolts.

  Fig 4: Locating Oil Strainer Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
1. Install the 2 magnets to the automatic transaxle oil pan sub-assembly.

  Fig 5: Identifying Magnets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new gasket to the automatic transaxle oil pan sub-assembly.
3. Apply adhesive to the 18 bolts.
  Adhesive

  Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent
4. Install the automatic transaxle oil pan sub-assembly to the automatic transaxle assembly with the 18 bolts.

  Fig 6: Locating Oil Pan Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
  NOTE:
  - In order to ensure proper sealing of the automatic transaxle oil pan bolts, apply adhesive to the bolts and install them within 10 minutes of adhesive application.
  - Completely remove any oil or grease from the contact surface of the transaxle case and automatic transaxle oil pan sub-assembly with the gasket before installation.
INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
HINT:

See step 10.
