Engine Assembly, Intake Manifold, Exhaust Manifold: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

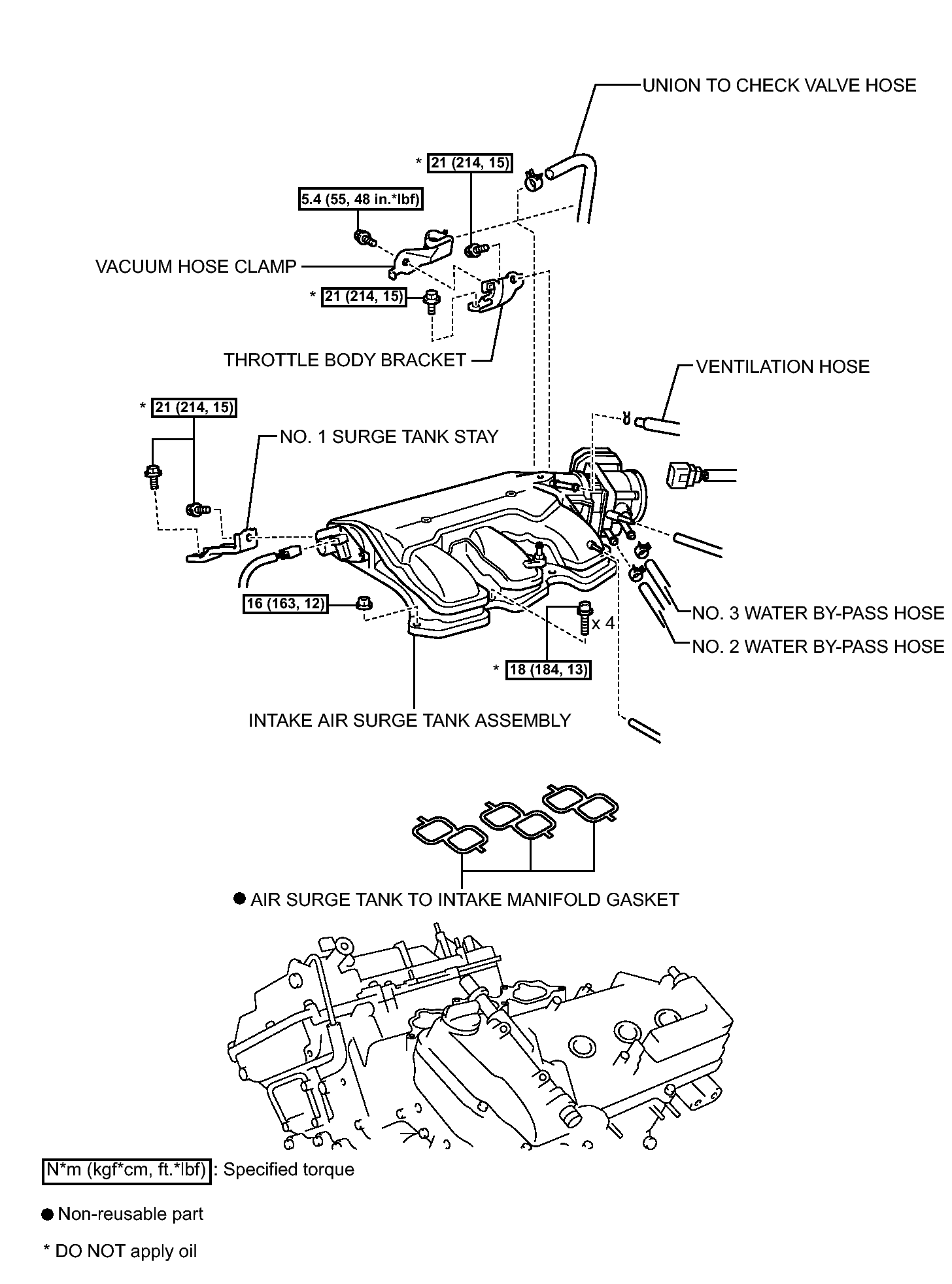

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

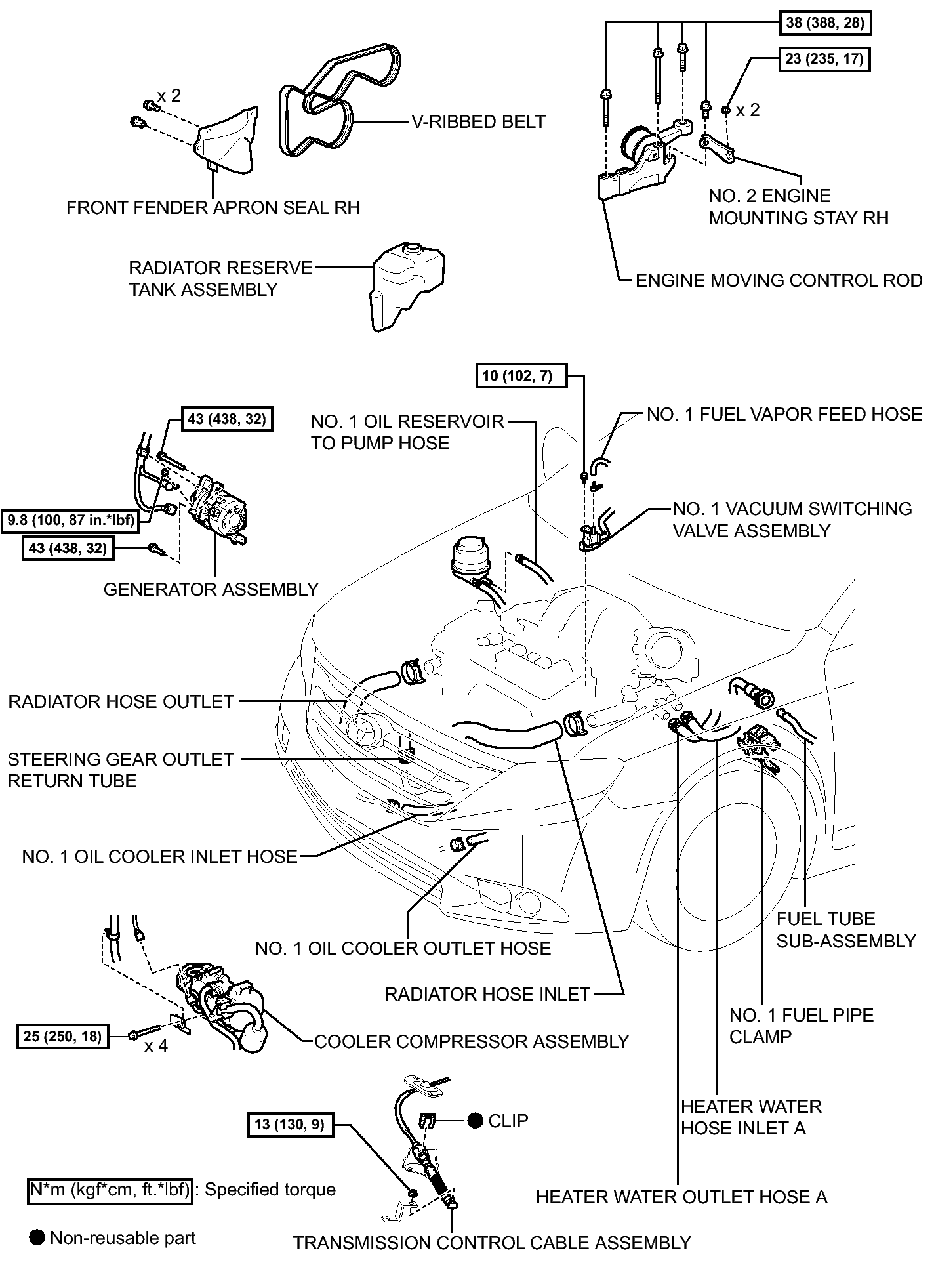

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specification (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

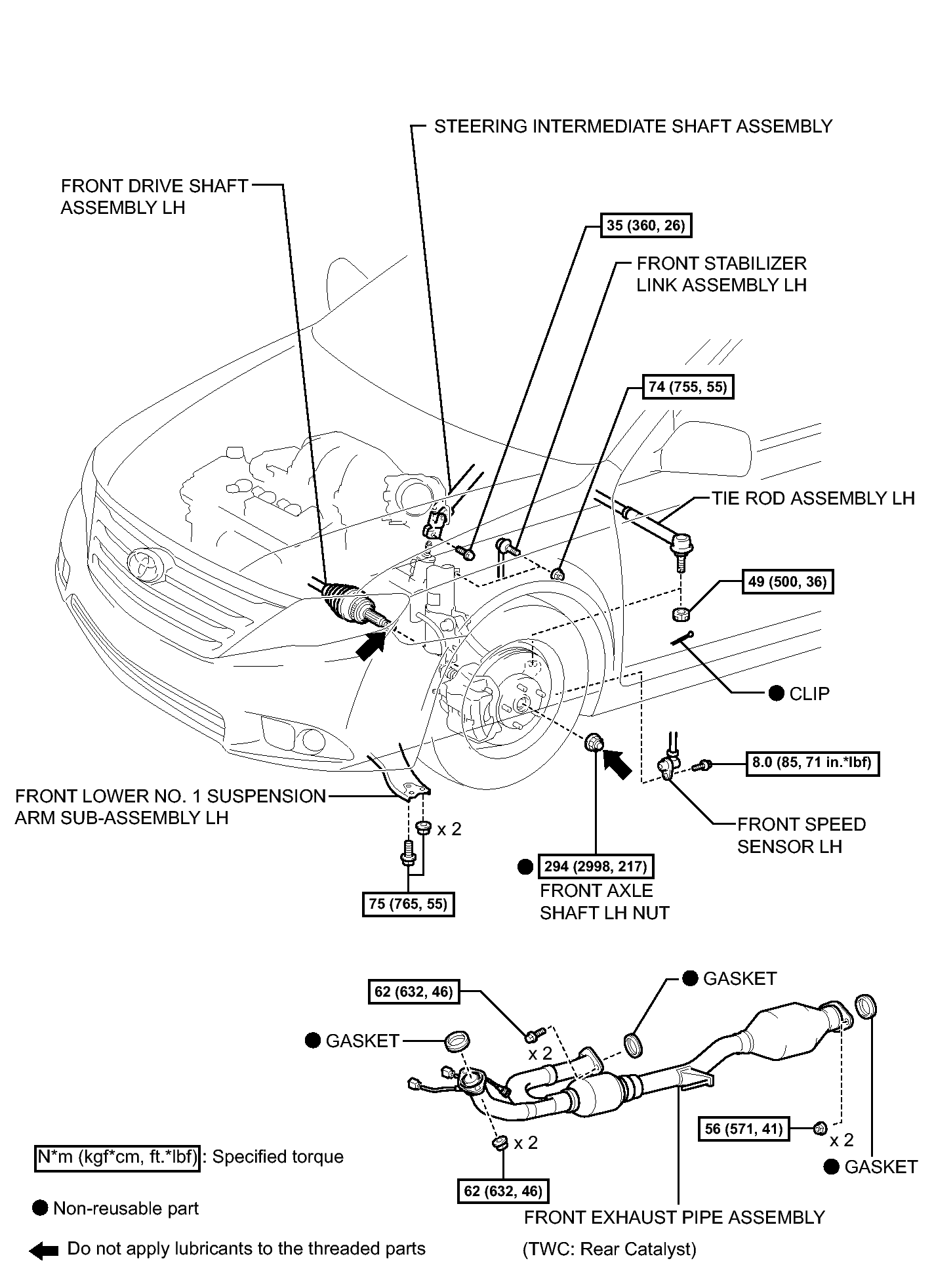

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specification (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

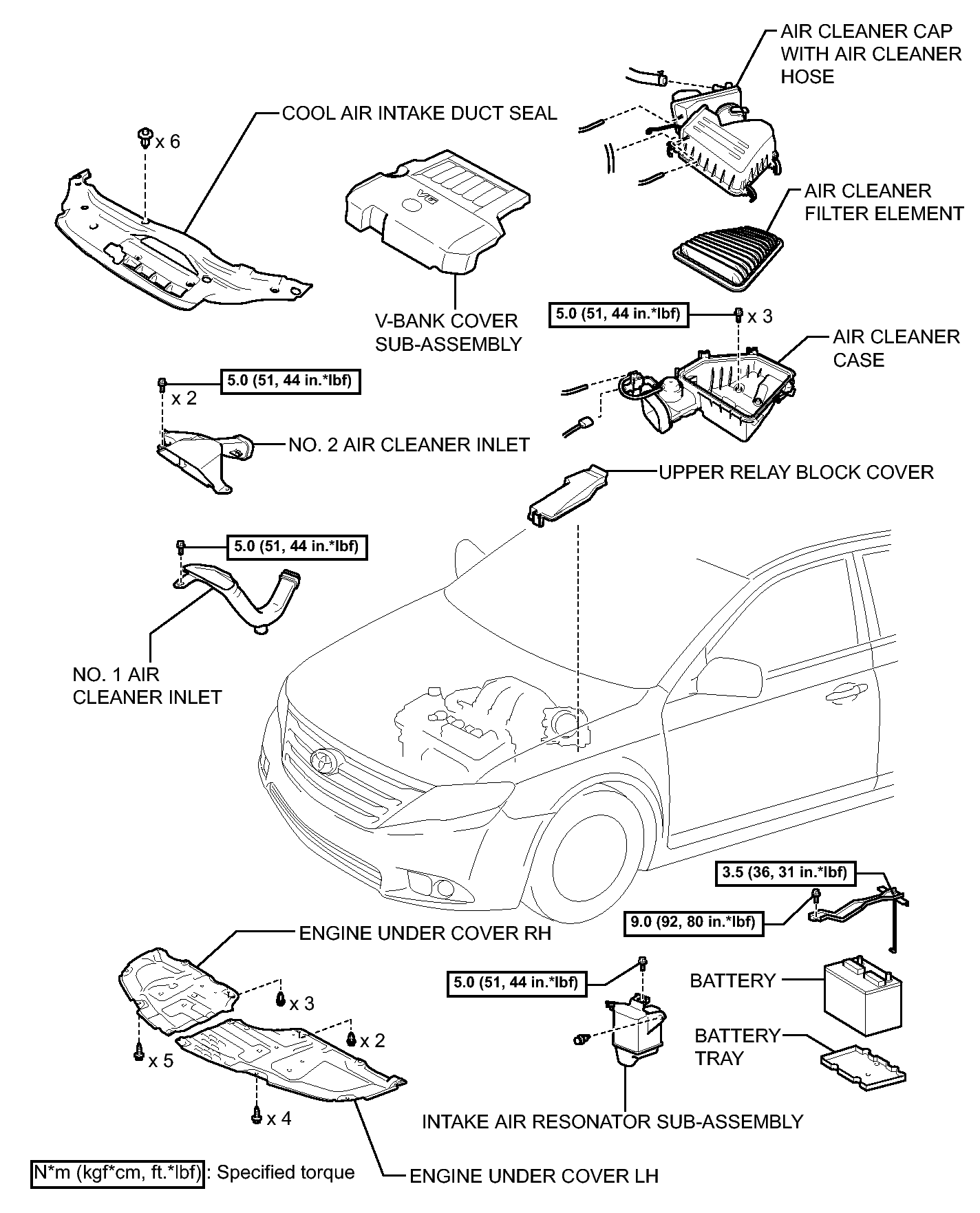

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specification (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

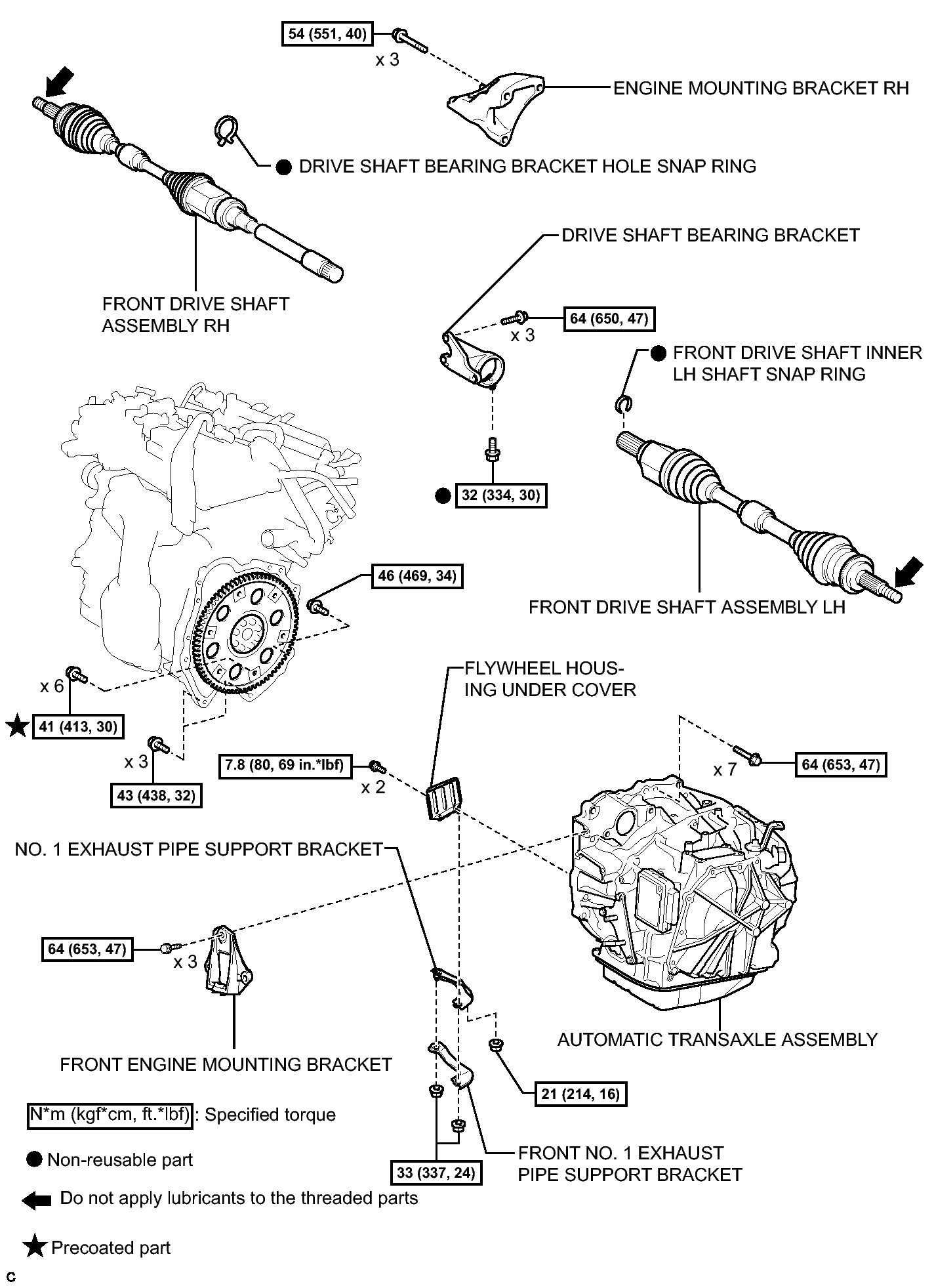

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specification (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

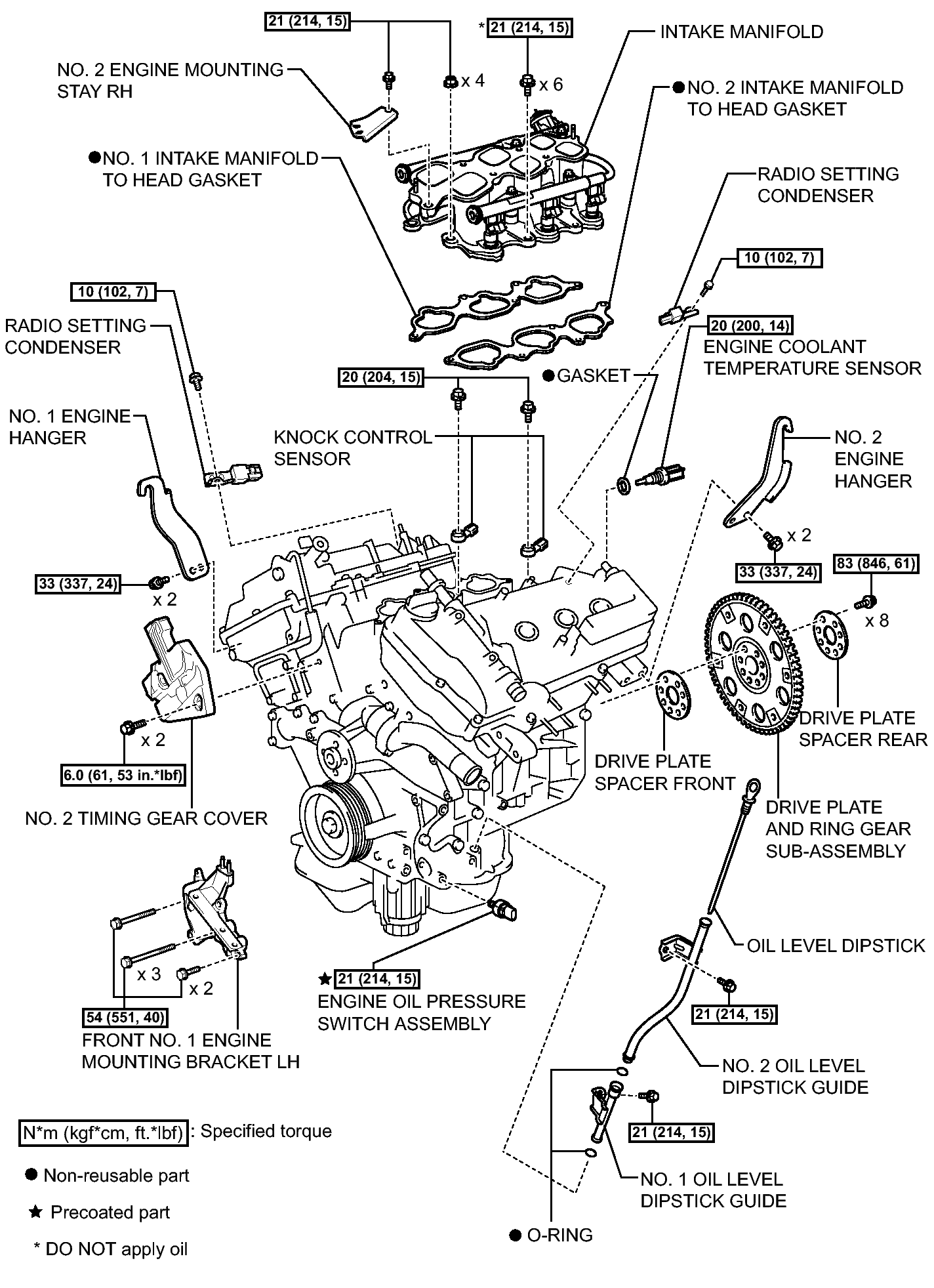

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specification (6 Of 9)

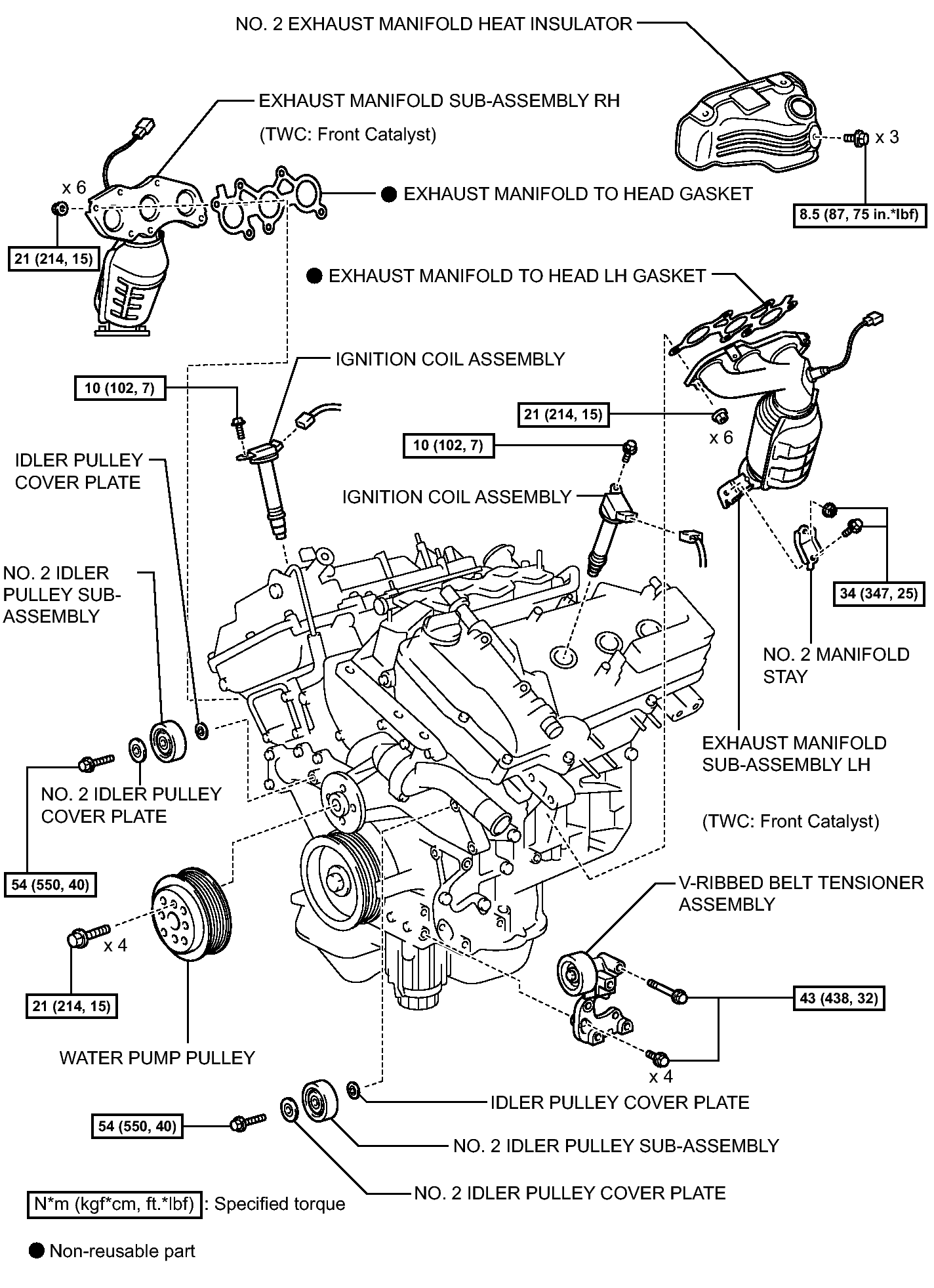

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specification (7 Of 9)

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specification (8 Of 9)

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specification (9 Of 9)
