Installation (To 12/2010): Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH
   NOTE:

   Do not twist the curtain shield airbag assembly LH when installing it.

   1. Connect the connector to the curtain shield airbag assembly LH.
      NOTE:

      When handling the airbag connector, take care not to damage the airbag wire harness.

   2. Install the curtain shield airbag assembly LH in the order shown in the illustration.
      1. Install the 9 bolts in order of A to I.

         Bolt D

         Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

         Bolt A, B, C, E, F, G, H, I

         Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

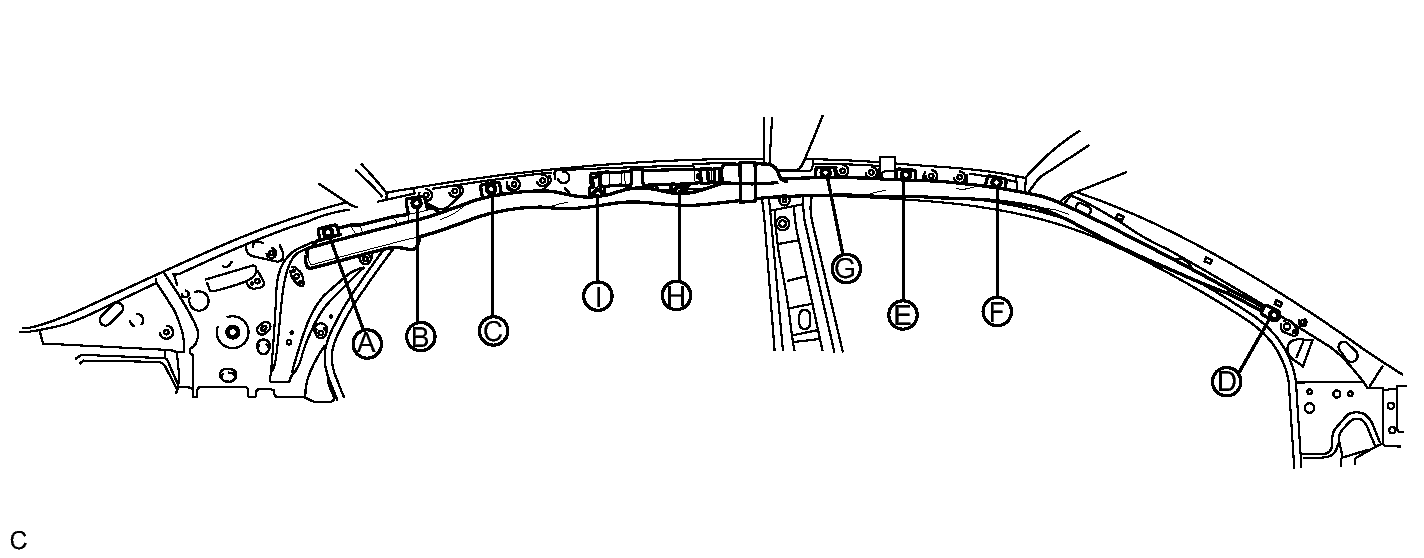

         Fig 1: Installing Sequence Of Bolts

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL ROOF HEADLINING ASSEMBLY

   HINT:

   Refer to the procedures from "INSTALL ROOF HEADLINING ASSEMBLY". Refer to INSTALLATION .

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
   1. Perform initialization. Refer to INITIALIZATION .

      HINT:

      Some systems need initialization when disconnecting the cable from the negative battery terminal.

5. INSPECT SRS WARNING LIGHT
   1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
