Installation (To 12/2010): Installation
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
- Connect the connector to the driver side knee airbag assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:When handling the airbag connector, take care not to damage the airbag wire harness.

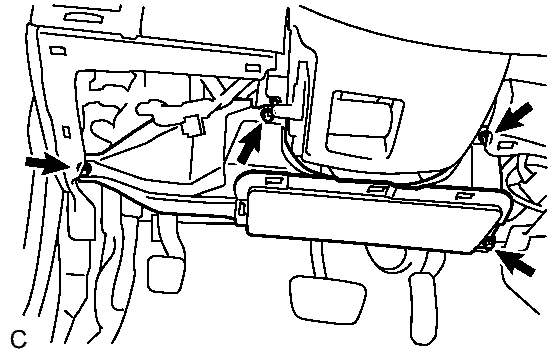

- Install the driver side knee airbag assembly with the 4 bolts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Connect the connector to the driver side knee airbag assembly.
- INSTALL INSTRUMENT PANEL FINISH PANEL LOWER LH
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
- INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
- INSTALL FRONT DOOR SCUFF PLATE LH
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization. Refer to INITIALIZATION
.
HINT:
Some systems need initialization when disconnecting the cable from the negative battery terminal.
- Perform initialization. Refer to INITIALIZATION
.
- INSPECT SRS WARNING LIGHT
- Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
