Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SEAT POSITION SENSOR
    1. Check that the ignition switch is off.
    2. Check that the battery negative (-) terminal is disconnected.
      WARNING:

      After disconnecting the negative battery terminal, wait for at least 90 seconds before starting the operation.

    3. Using a feeler gauge 1 mm (0.039 in.), install the seat position sensor.

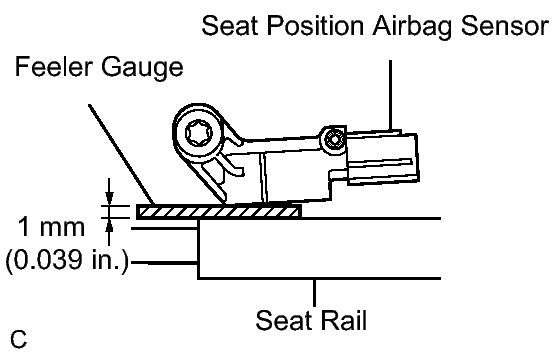

      Fig 1: View Of Seat Position Sensor
      GTY304848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • If the seat position sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
      • When installing the seat position sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.

      HINT:

      Be sure that a clearance between the seat position sensor and the seat rail is within 0.6 mm (0.023 in.) to 2 mm (0.079 in.).

    4. Using a "torx" socket wrench, tighten the "torx" screw to install the seat position sensor.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    5. Make sure that a clearance between the seat position sensor and the seat rail is within 0.6 mm (0.023 in.) to 2 mm (0.079 in.).
    6. Check that there is no looseness in the installation parts of the seat position sensor.
    7. Connect the connector to the seat position sensor.
  2. INSTALL SEAT SLIDE POSITION SENSOR PROTECTOR
  3. INSTALL FRONT SEAT CUSHION SHIELD INNER NO. 1 LH
  4. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
  5. INSTALL RECLINING POWER SEAT SWITCH KNOB
  6. INSTALL FRONT SEAT ASSEMBLY  . Refer to INSTALLATION - Step 1
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  8. PERFORM INITIALIZATION
    1. Perform initialization. Refer to INITIALIZATION .

      HINT:

      Some systems need initialization when disconnecting the cable from the negative battery terminal.

  9. INSPECT CHECK POWER SEAT FUNCTION
  10. INSPECT SEAT HEATER OPERATION
  11. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
