Removal (To 12/2010): Removal
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- REMOVE V-RIBBED BELT . Refer to REMOVAL - Step 4
- REMOVE GENERATOR ASSEMBLY . Refer to REMOVAL - Step 4
- DISCONNECT COOLER COMPRESSOR ASSEMBLY . Refer to REMOVAL - Step 63

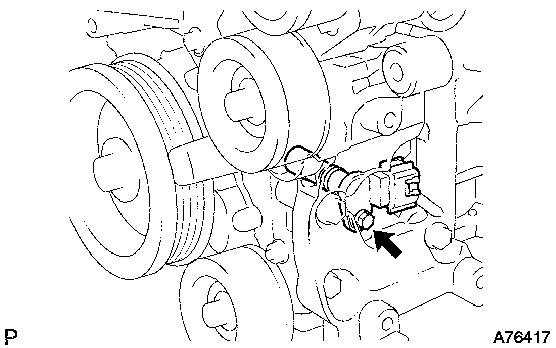

- REMOVE CRANKSHAFT POSITION SENSOR
- Disconnect the crankshaft position sensor connector.
- Remove the bolt and crankshaft position sensor.
