Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL TANK ASSEMBLY

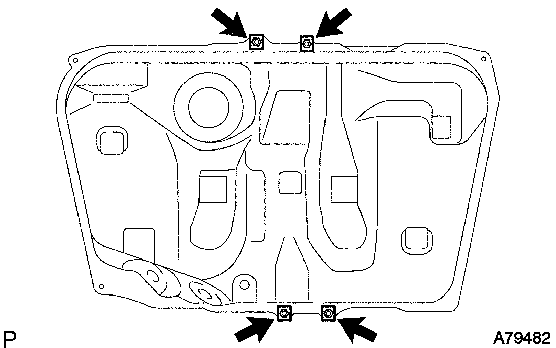

    1. Install the 4 clip nuts.
      Fig 1: Installing Clip And Nuts
      GTY191529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

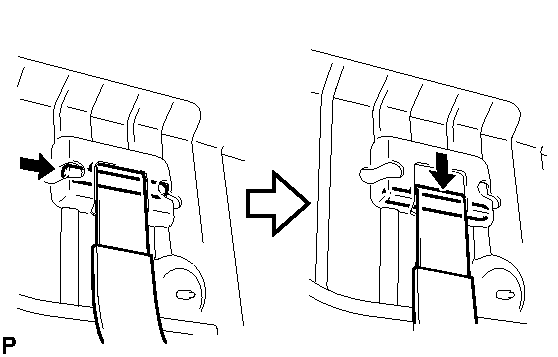

    2. Install the 2 fuel tank bands with the 2 pins.
      Fig 2: Connecting Fuel Tank Bands With Pins
      GTY174692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

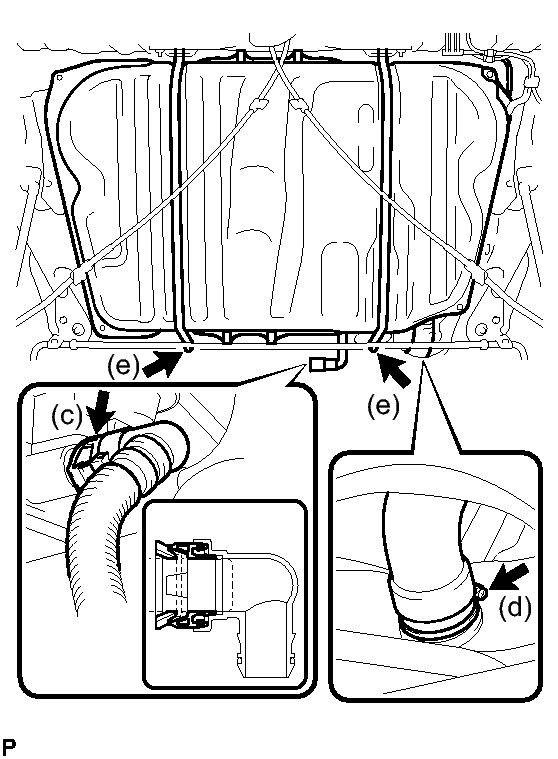

    3. Connect the fuel tank vent hose.
      Fig 3: Locating Fuel Tank Inlet Pipe
      GTY305835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the fuel tank inlet pipe with the fuel filter pipe clamp.
    5. Tighten the 2 set bolts of the fuel tank bands.

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

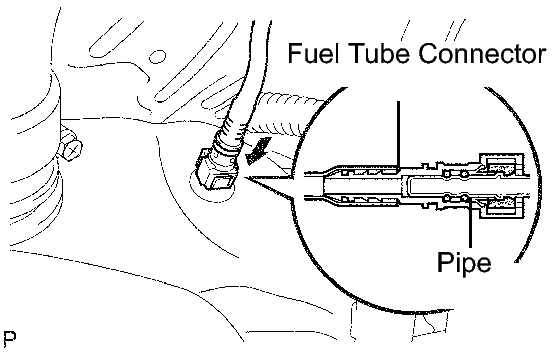

    6. Connect the fuel tube No. 1.
      Fig 4: Connecting Fuel Tube
      GTY304672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Push the fuel tube connector into the pipe until the fuel tube connector makes a "click" sound.
        NOTE:
        • Check that there is no damage or foreign objects on the connected part.
        • After connecting, check if the fuel tube connector and the pipe are securely connected by trying to pull them apart.

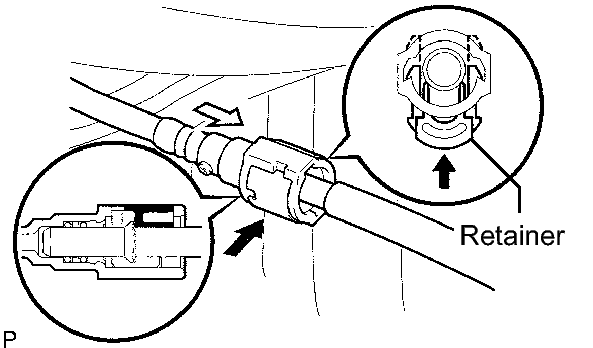

    7. Connect the fuel pump tube.
      Fig 5: Connecting Fuel Pump Tube
      GTY172459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Push in the fuel pump tube connector to the pipe and push up the retainer so that the claws engage.
        NOTE:
        • Check that there is no damage or foreign objects on the connected part.
        • After connecting, check if the fuel tube connector and the pipe are securely connected by trying to pull them apart.

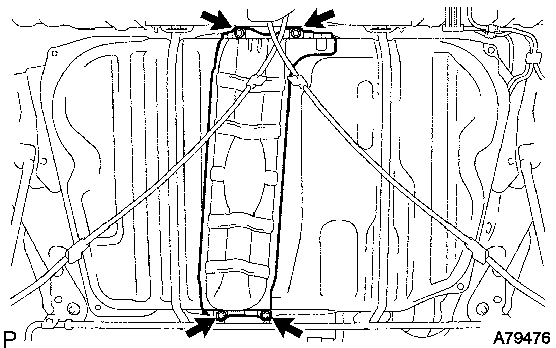

  2. INSTALL FUEL TANK PROTECTOR LOWER CENTER
    1. Install all fuel tank protector lower center.
      Fig 6: Locating Fuel Tank Protector And Bolts
      GTY176313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

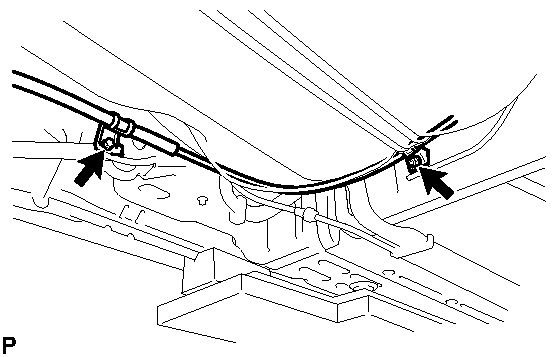

  3. INSTALL PARKING BRAKE CABLE ASSEMBLY NO. 3
    1. Install the parking brake cable assembly No. 3 with the bolt and nut.
      Fig 7: Locating Parking Brake Cable Assembly No. 3 Fasteners
      GTY192440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

      Nut

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

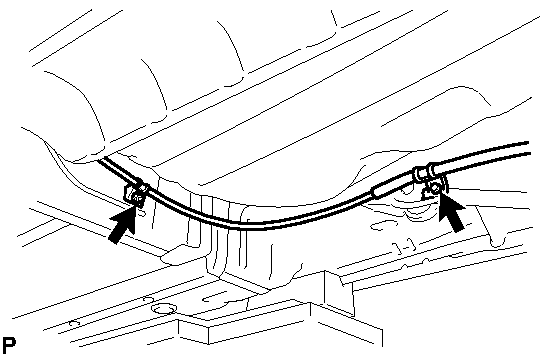

  4. INSTALL PARKING BRAKE CABLE ASSEMBLY NO. 2
    1. Install the parking brake cable assembly No. 2 with the bolt and nut.
      Fig 8: Locating Parking Brake Cable Assembly No. 2 Fasteners
      GTY192439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

      Nut

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  5. INSTALL EXHAUST PIPE ASSEMBLY CENTER  . Refer to INSTALLATION - Step 3
  6. INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE  Refer to step  1
  7. INSTALL FUEL TANK VENT TUBE SET PLATE  Refer to step  2
  8. CONNECT FUEL PUMP TUBE SUB-ASSEMBLY  Refer to step  3
  9. ADD FUEL
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  11. INSPECT FOR FUEL LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
  12. INSPECT FOR EXHAUST GAS LEAK
  13. INSTALL REAR FLOOR SERVICE HOLE COVER
  14. INSTALL REAR SEAT CUSHION ASSEMBLY
