Check CAN Bus Line for Short to GND (TO 12/2010): Procedure

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK SHORT TO GND IN CAN BUS WIRE (DLC3 SUB BUS LINE)
    1. Turn the ignition switch off.
    2. Disconnect the connector from the CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

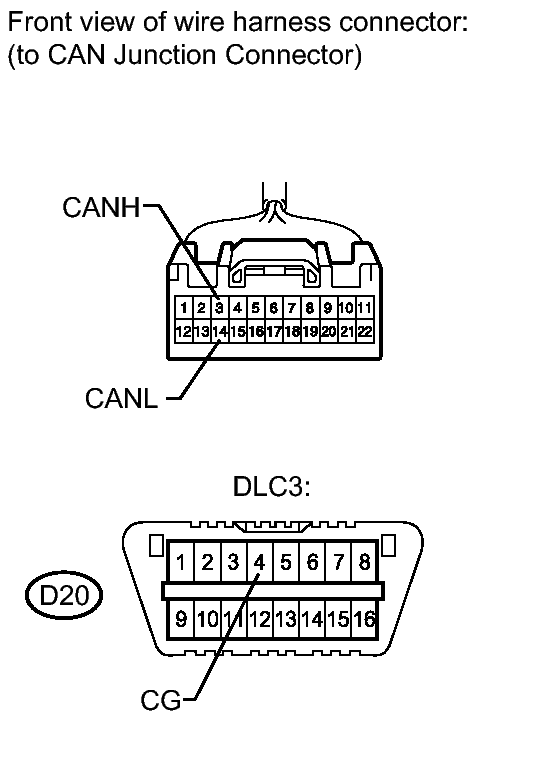

      Fig 1: Identifying Short To GND In CAN Bus Wire (DLC3 Sub Bus Line) Connector Terminals
      GTY301379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      3 (CANH) - D20-4 (CG) Ignition switch off 200 Ω or more
      14 (CANL) - D20-4 (CG) Ignition switch off 200 Ω or more

    NG → REPAIR OR REPLACE DLC3 BRANCH WIRE OR CONNECTOR

    OK: Go to next step

  2. CHECK SHORT TO GND IN CAN BUS WIRE (NETWORK GATEWAY ECU SUB BUS LINE)
    1. Measure the resistance according to the value(s) in the table below.

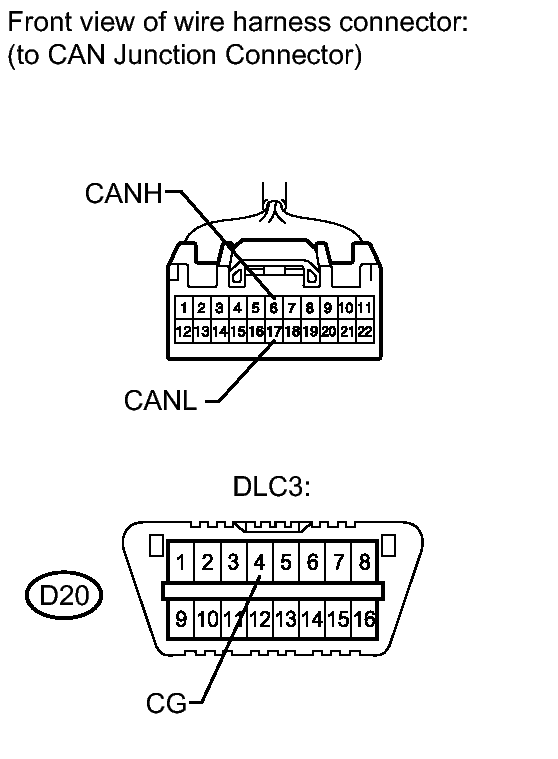

      Fig 2: Identifying Short To GND In CAN Bus Wire (Network Gateway ECU Sub Bus Line) Connector Terminals
      GTY301380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      6 (CANH) - D20-4 (CG) Ignition switch off 200 Ω or more
      17 (CANL) - D20-4 (CG) Ignition switch off 200 Ω or more

    NG → See step   8

    OK: Go to next step

  3. CHECK SHORT TO GND IN CAN BUS WIRE (ECM MAIN BUS LINE)
    1. Measure the resistance according to the value(s) in the table below.

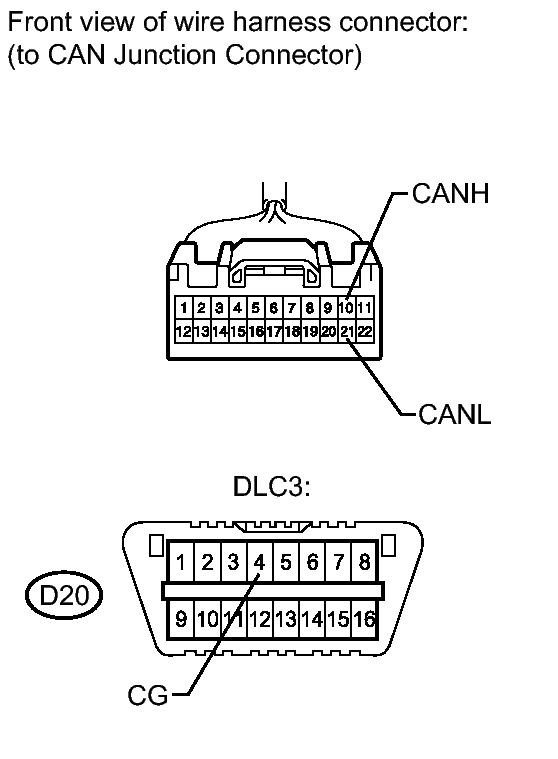

      Fig 3: Identifying Short To GND In CAN Bus Wire (ECM Main Bus Line) Connector Terminals
      GTY306832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      10 (CANH) - D20-4 (CG) Ignition switch off 200 Ω or more
      21 (CANL) - D20-4 (CG) Ignition switch off 200 Ω or more

    NG → See step   9

    OK: Go to next step

  4. CHECK SHORT TO GND IN CAN BUS WIRE (YAW RATE SENSOR SUB BUS LINE)
    1. Measure the resistance according to the value(s) in the table below.

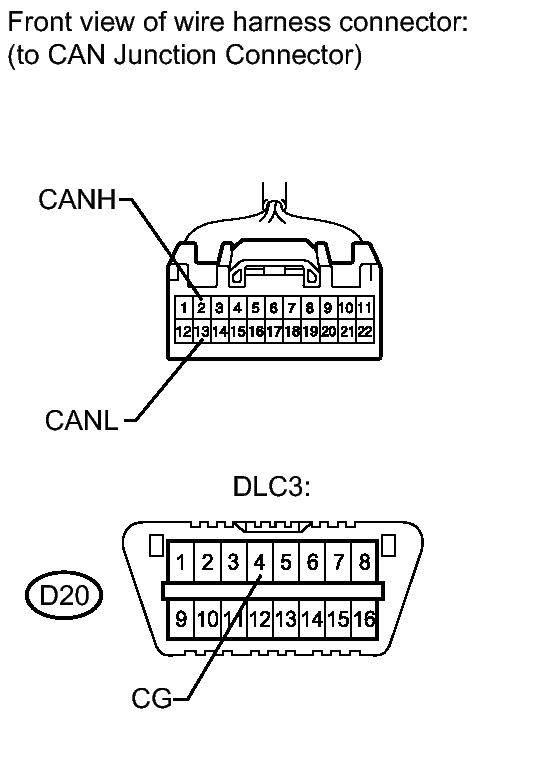

      Fig 4: Identifying Short To GND In CAN Bus Wire (yaw Rate Sensor Sub Bus Line) Connector Terminals
      GTY301376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      2 (CANH) - D20-4 (CG) Ignition switch off 200 Ω or more
      13 (CANL) - D20-4 (CG) Ignition switch off 200 Ω or more

    NG → See step   10

    OK: Go to next step

  5. CHECK SHORT TO GND IN CAN BUS WIRE (STEERING ANGLE SENSOR SUB BUS LINE)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 5: Identifying Short To GND In CAN Bus Wire (Steering Angle Sensor Sub Bus Line) Connector Terminals
      GTY301375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      4 (CANH) - D20-4 (CG) Ignition switch off 200 Ω or more
      15 (CANL) - D20-4 (CG) Ignition switch off 200 Ω or more

    NG → See step   11

    OK: Go to next step

  6. CHECK SHORT TO GND IN CAN BUS WIRE (SKID CONTROL ECU MAIN BUS LINE)
    1. Measure the resistance according to the value(s) in the table below.

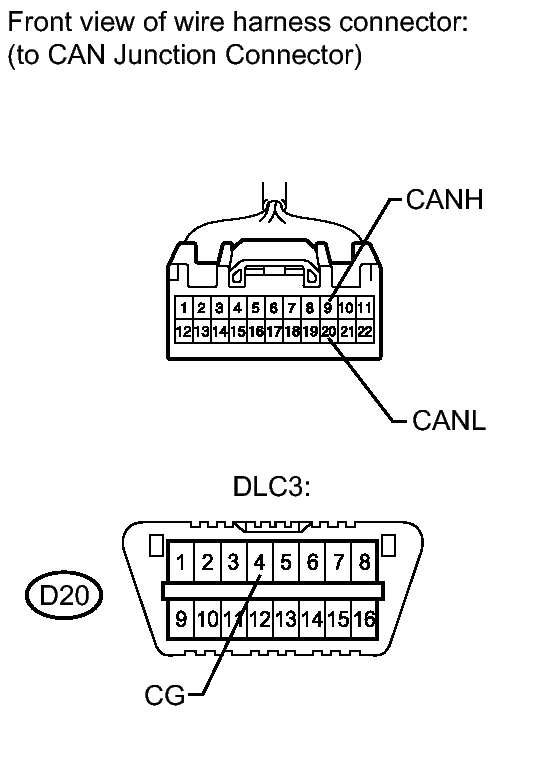

      Fig 6: Identifying Short To GND In CAN Bus Wire (skid Control ECU Main Bus Line) Connector Terminals
      GTY301356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      9 (CANH) - D20-4 (CG) Ignition switch off 200 Ω or more
      20 (CANL) - D20-4 (CG) Ignition switch off 200 Ω or more

    NG → See step   12

    OK: Go to next step

  7. CHECK SHORT TO GND IN CAN BUS WIRE (NAVIGATION ECU SUB BUS LINE)
    1. Measure the resistance according to the value(s) in the table below.

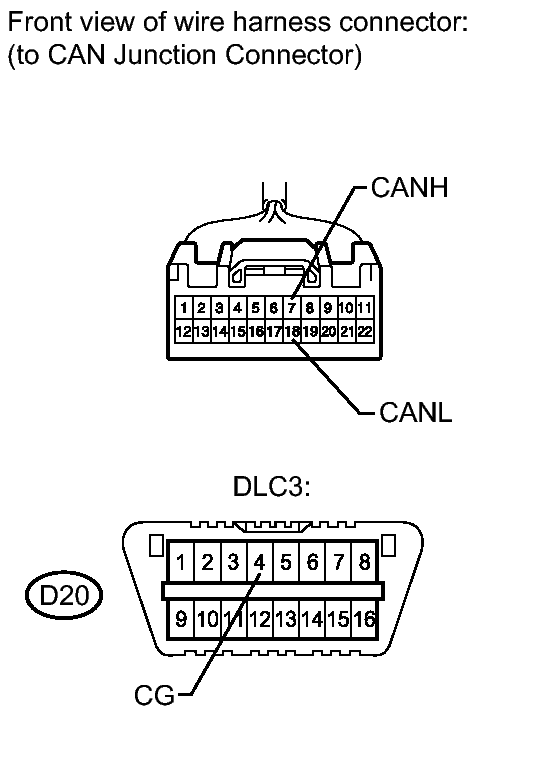

      Fig 7: Identifying Short To GND In CAN Bus Wire (Navigation ECU Sub Bus Line) Connector Terminals
      GTY301357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      7 (CANH) - D20-4 (CG) Ignition switch off 200 Ω or more
      18 (CANL) - D20-4 (CG) Ignition switch off 200 Ω or more

    NG → See step   13

    OK → REPLACE CAN JUNCTION CONNECTOR

  8. CHECK SHORT TO GND IN CAN BUS WIRE (NETWORK GATEWAY ECU)
    1. Disconnect the gateway ECU connector (E23).
    2. Measure the resistance according to the value(s) in the table below.
      Fig 8: Identifying Short To GND In CAN Bus Wire (Network Gateway ECU) Connector Terminals
      GTY301380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      6 (CANH) - D20-4 (CG) Ignition switch off 200 Ω or more
      17 (CANL) - D20-4 (CG) Ignition switch off 200 Ω or more

    NG → REPAIR OR REPLACE NETWORK GATEWAY ECU SUB BUS LINE OR CONNECTOR

    OK → REPLACE NETWORK GATEWAY ECU

  9. CHECK SHORT TO GND IN CAN BUS WIRE (ECM)
    1. Disconnect the ECM connector (A55).
    2. Measure the resistance according to the value(s) in the table below.
      Fig 9: Identifying Short To GND In CAN Bus Wire (ECM) Connector Terminals
      GTY306832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      10 (CANH) - D20-4 (CG) Ignition switch off 200 Ω or more
      21 (CANL) - D20-4 (CG) Ignition switch off 200 Ω or more

    NG → REPAIR OR REPLACE ECM MAIN BUS LINE OR CONNECTOR

    OK → See step   14

  10. CHECK SHORT TO GND IN CAN BUS WIRE (YAW RATE SENSOR)
    1. Disconnect the yaw rate sensor connector (D28).
    2. Measure the resistance according to the value(s) in the table below.
      Fig 10: Identifying Short To GND In CAN Bus Wire (yaw Rate Sensor) Connector Terminals
      GTY301376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      2 (CANH) - D20-4 (CG) Ignition switch off 200 Ω or more
      13 (CANL) - D20-4 (CG) Ignition switch off 200 Ω or more

    NG → REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE WIRE

    OK → See step   15

  11. CHECK SHORT TO GND IN CAN BUS WIRE (STEERING ANGLE SENSOR)
    1. Disconnect the steering angle sensor connector (D12).
    2. Measure the resistance according to the value(s) in the table below.
      Fig 11: Identifying Short To GND In CAN Bus Wire (Steering Angle Sensor) Connector Terminals
      GTY301375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      4 (CANH) - D20-4 (CG) Ignition switch off 200 Ω or more
      15 (CANL) - D20-4 (CG) Ignition switch off 200 Ω or more

    NG → REPAIR OR REPLACE STEERING ANGLE SENSOR SUB BUS LINE WIRE OR CONNECTOR

    OK → See step   16

  12. CHECK SHORT TO GND IN CAN BUS WIRE (SKID CONTROL ECU)
    1. Disconnect the skid control ECU connector (A34).
    2. Measure the resistance according to the value(s) in the table below.
      Fig 12: Identifying Short To GND In CAN Bus Wire (Skid Control ECU) Connector Terminals
      GTY301356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      9 (CANH) - D20-4 (CG) Ignition switch off 200 Ω or more
      20 (CANL) - D20-4 (CG) Ignition switch off 200 Ω or more

    NG → REPAIR OR REPLACE SKID CONTROL ECU MAIN BUS WIRE OR CONNECTOR

    OK → See step   17

  13. CHECK SHORT TO GND IN CAN BUS WIRE (NAVIGATION ECU)
    1. Disconnect the navigation ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      Fig 13: Identifying Short To GND In CAN Bus Wire (Navigation ECU) Connector Terminals
      GTY301357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      7 (CANH) - D20-4 (CG) Ignition switch off 200 Ω or more
      18 (CANL) - D20-4 (CG) Ignition switch off 200 Ω or more

    NG → REPAIR OR REPLACE NAVIGATION ECU SUB BUS LINE

    OK → See step   18

  14. REPLACE ECM. Refer to  REMOVAL
  15. REPLACE YAW RATE AND ACCELERATION SENSOR. Refer to  REMOVAL
  16. REPLACE STEERING ANGLE SENSOR. Refer to  REMOVAL
  17. REPLACE SKID CONTROL ECU. Refer to  REMOVAL
  18. REPLACE NAVIGATION ECU. Refer to  REMOVAL
