Navigation ECU Communication Stop Mode (FROM 12/2010): Wiring Diagram

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

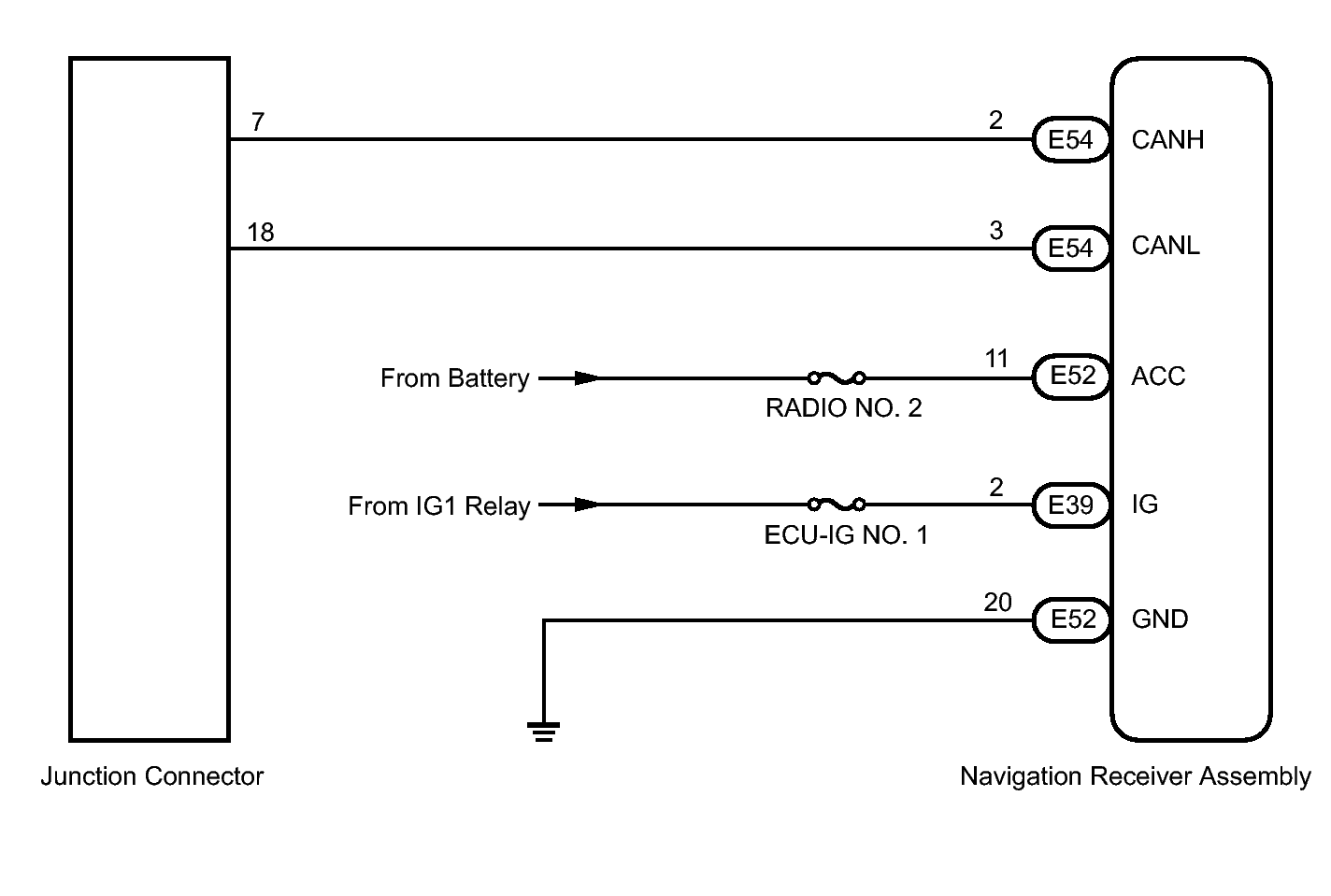

Fig 1: Navigation ECU (Navigation Receiver Assembly) - Wiring Diagram
GTY301002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
