Open in One Side of CAN Sub Bus Line (TO 12/2010): Wiring Diagram
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

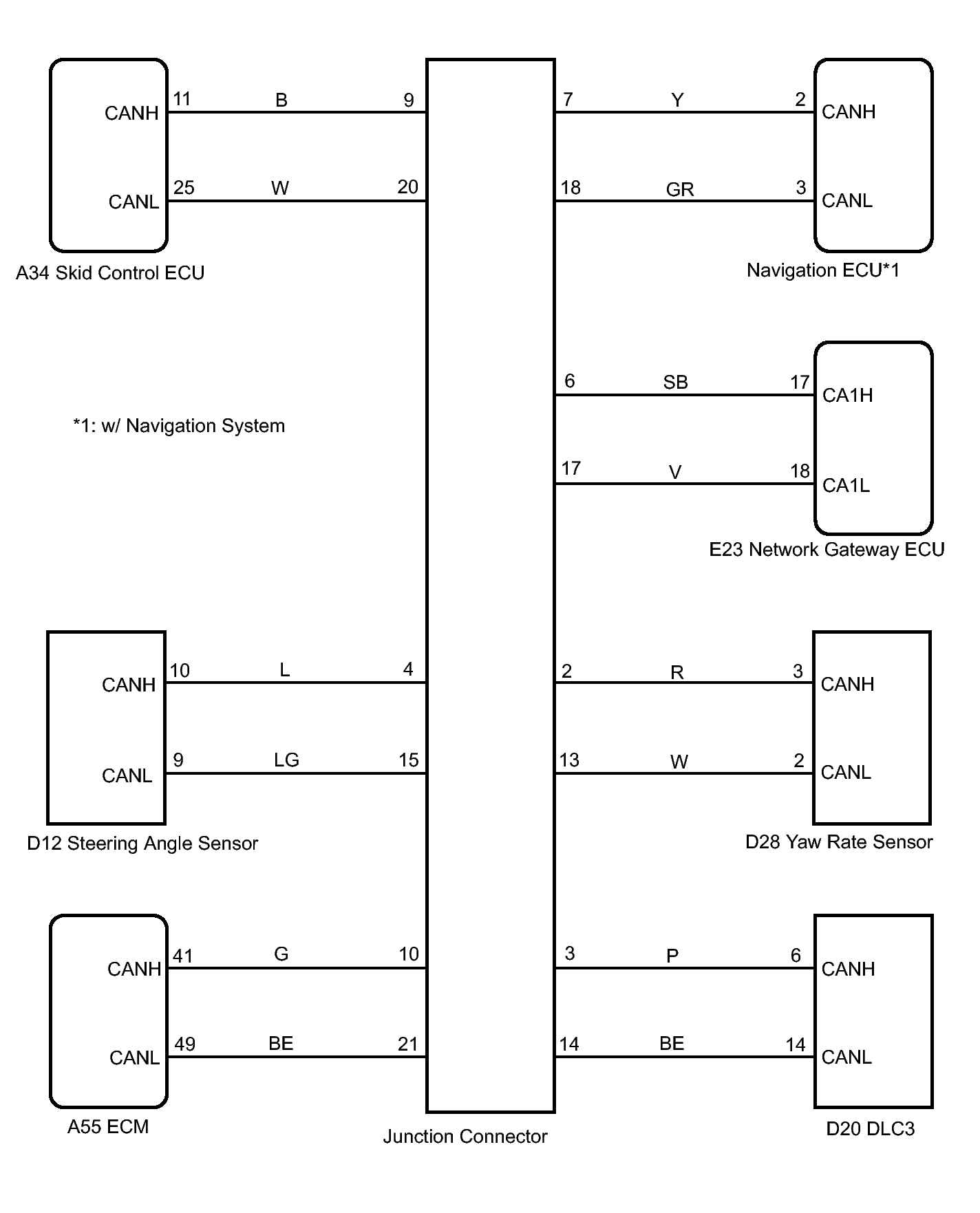

Fig 1: Junction Connector (ECU's and Sensors) - Wiring Diagram
