Front Axle Hub: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

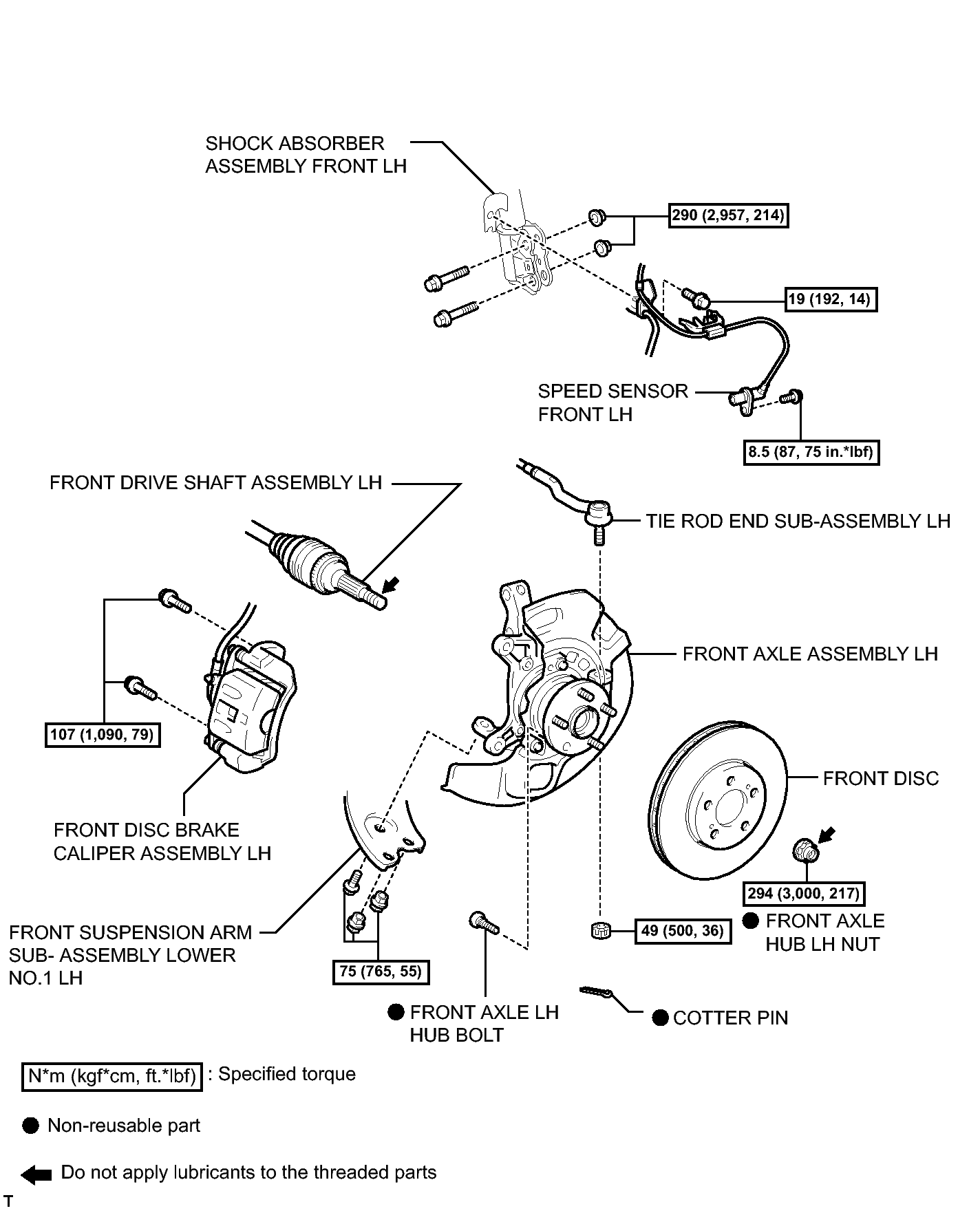

Fig 1: Identifying Front Axle Hub Replacement Components With Torque Specifications (1 Of 2)
GTY303172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

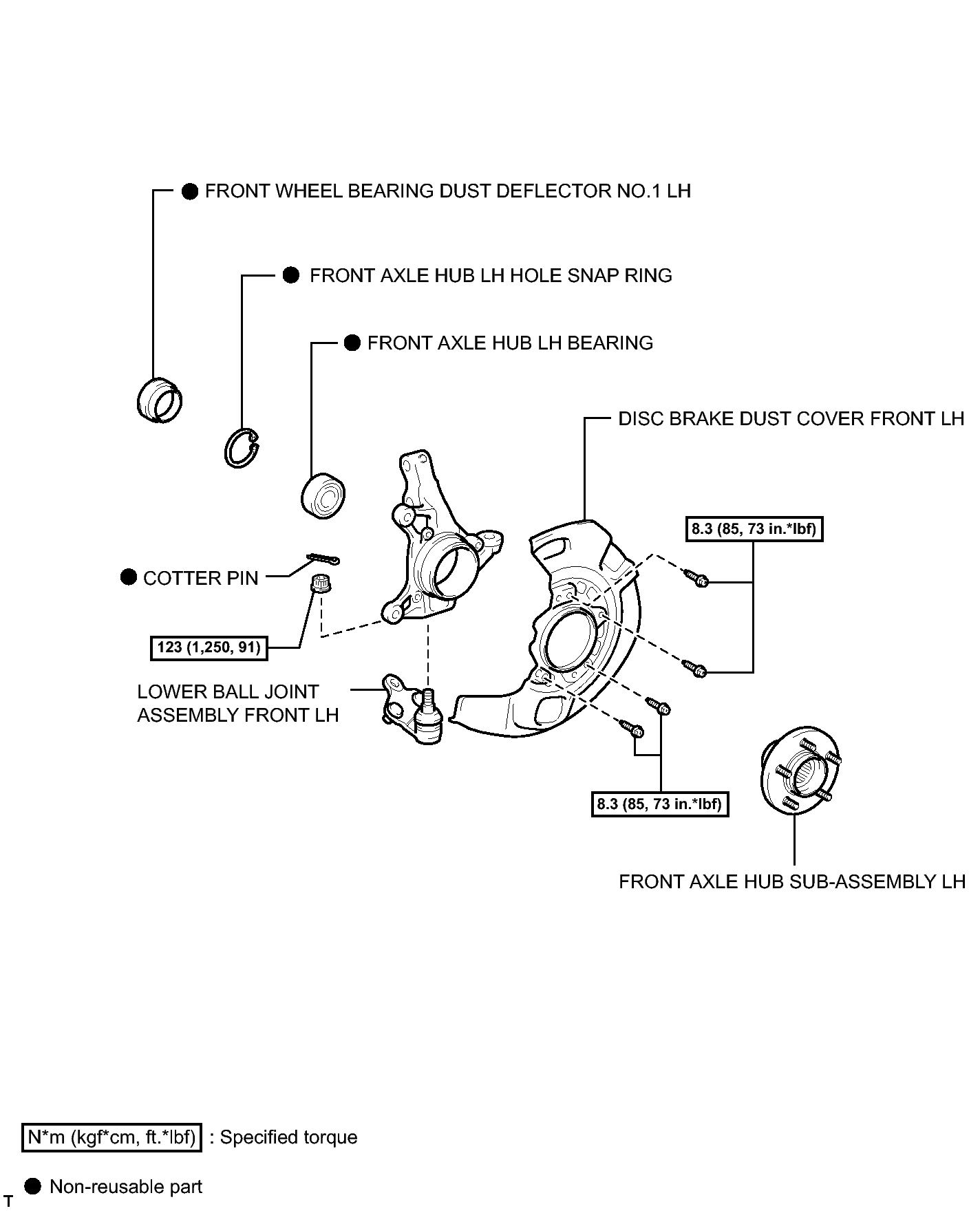

Fig 1: Identifying Front Axle Hub Replacement Components With Torque Specifications (2 Of 2)
GTY192262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
