Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR AXLE LH HUB BOLT
    1. Install a washer and nut to a new bolt, as shown in the illustration.

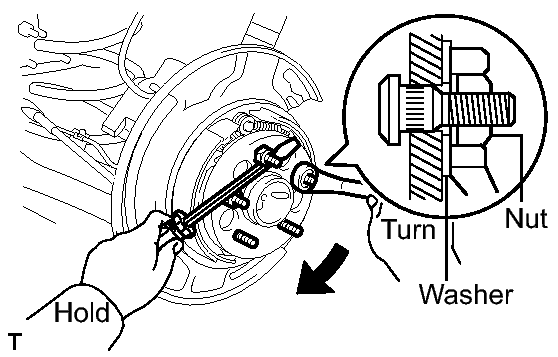

      Fig 1: Installing Rear Axle LH Hub Bolt
      GTY305882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver or an equivalent to hold the hub & bearing assembly, install a new rear axle LH hub bolt by tightening the nut.
  2. INSTALL REAR DISC
  3. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH  Refer to 10
  4. INSTALL REAR WHEEL
