Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL BRAKE ACTUATOR WITH BRACKET
1. Install the actuator with bracket with the 3 bolts.

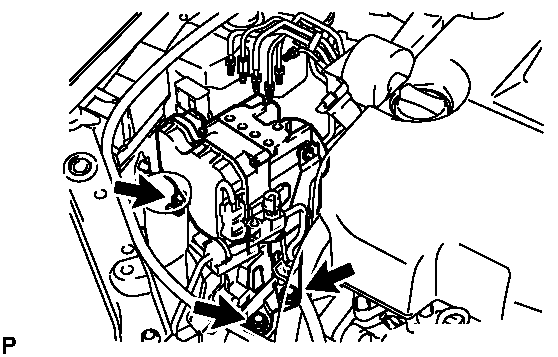

  Fig 1: Identifying Actuator With Bracket And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

  NOTE:
  Do not damage the brake tubes and wire harness.
2. Connect the actuator connector.

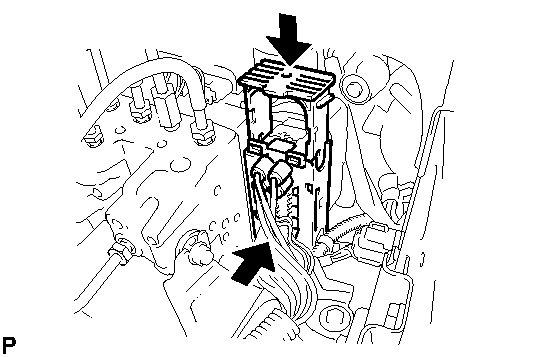

  Fig 2: Connecting Actuator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, connect each brake tube to correct positions of the actuator with bracket as shown in the illustration.

  Fig 3: Identifying Tags For Reconnection Points
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09023-00101
  Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)
FILL RESERVOIR WITH BRAKE FLUID . Refer to BLEEDING - Step 1
BLEED MASTER CYLINDER . Refer to BLEEDING - Step 2
BLEED BRAKE LINE . Refer to BLEEDING - Step 3
CHECK BRAKE FLUID LEAKAGE
CHECK FLUID LEVEL IN RESERVOIR . Refer to BLEEDING - Step 6
CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
1. Perform the yaw rate sensor zero point calibration. Refer to CALIBRATION .
CHECK BRAKE ACTUATOR WITH TECHSTREAM
1. Check the brake actuator. Refer to ON-VEHICLE INSPECTION .
