On-Vehicle Inspection

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT REAR COMBINATION LIGHT ASSEMBLY
    1. Connect the (+) lead from the voltmeter to terminal 2 and the (-) lead from the voltmeter to terminal 3.

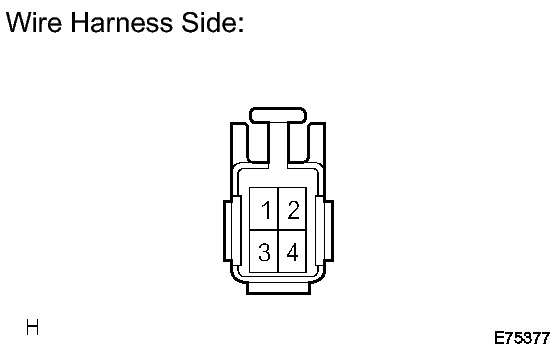

      Fig 1: View Of Rear Combination Light Connector Terminals
      GTY206221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Condition Specified Condition
      1 - 3 Light control switch OFF Below 1 V
      1 - 3 Light control switch TAIL 10 to 14 v
      2 - 3 Brake pedal released Below 1 V
      2 - 3 Brake pedal depressed 10 to 14 v
