LVL Terminal Circuit: Procedure
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK HARNESS AND CONNECTOR (DLC3 - HEADLIGHT BEAM LEVEL CONTROL ECU)
- Disconnect connector A21 from the headlight beam level control ECU.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition D20-8 - A21-18 Always Below 1 Ω D20-8 - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step

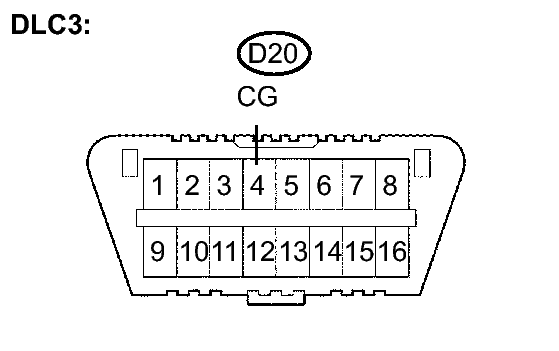

- CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
Tester Connection Condition Specified Condition D20-4 - Body ground Always Below 1 Ω
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → PROCEED TO PROBLEM SYMPTOMS TABLE NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- Measure the resistance according to the value(s) in the table below.
