Parking Brake Switch Circuit: Procedure

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. READ VALUE USING TECHSTREAM
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Body / Data List.
    5. Read the display on the Techstream.
      BODY (BODY ECU)

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Parking Brake SW Parking brake SW signal / ON or OFF ON: Parking brake switch is ON
      OFF: Parking brake switch is OFF
      -

      OK

      Normal conditions listed above are displayed.

    NG → See step   2

    OK → PROCEED TO  PROBLEM SYMPTOMS TABLE  NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

  2. INSPECT PARKING BRAKE SWITCH ASSEMBLY
    1. Remove the parking brake switch.

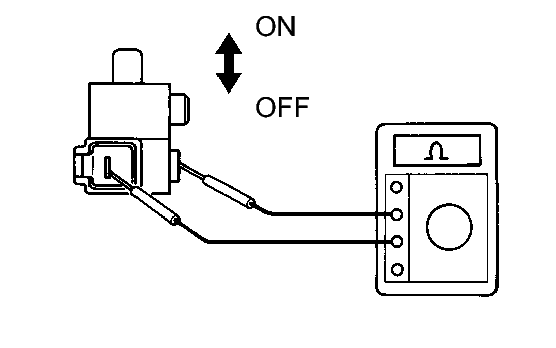

      Fig 1: Measuring Resistance of Parking Brake Switch Assembly
      GTY174736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      1 - Switch body OFF
      (When shaft is pressed)
      10 kΩ or higher
      1 - Switch body ON
      (When shaft is not pressed)
      Below 1 Ω

    NG → REPLACE PARKING BRAKE SWITCH ASSEMBLY

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - BODY GROUND)
    1. Disconnect connector IC from the instrument panel junction block assembly.
    2. Measure the resistance according to the value(s) in the table below.

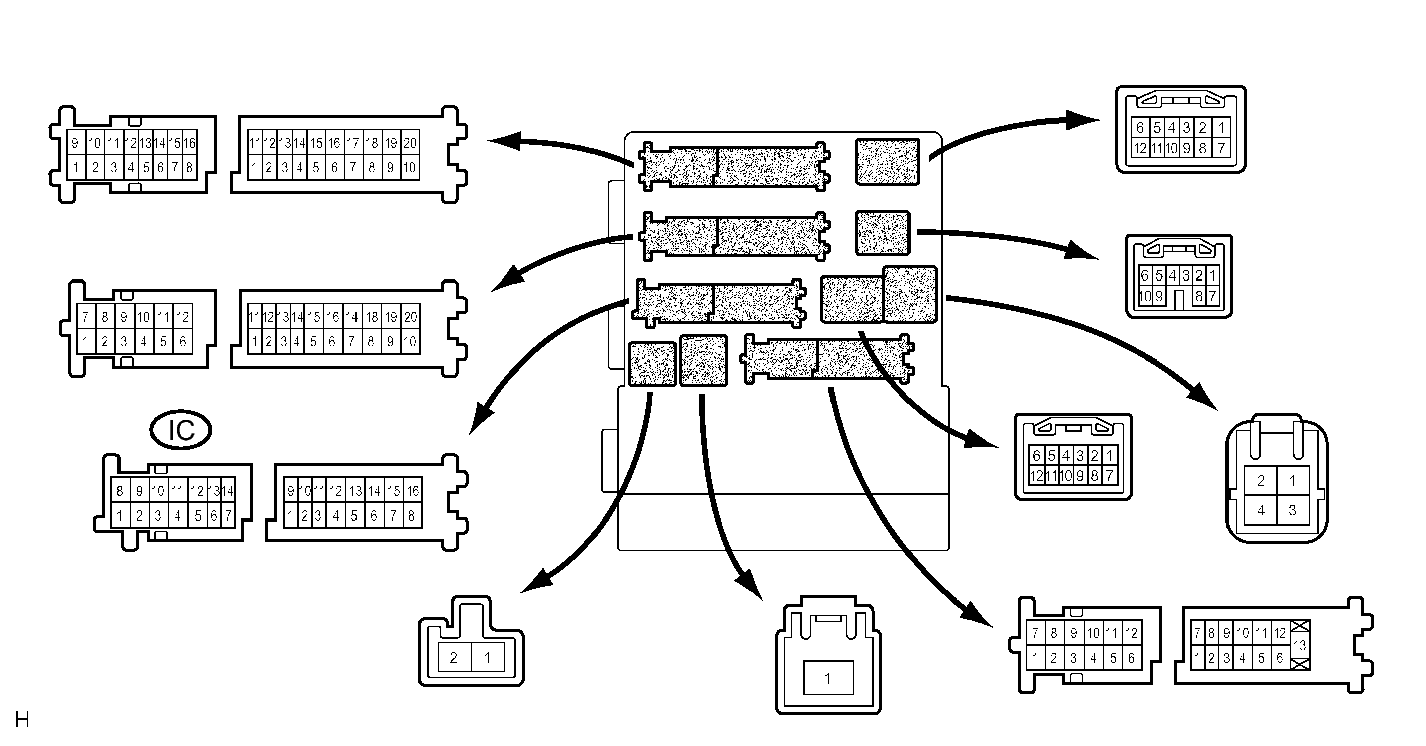

      Fig 2: Identifying Instrument Panel Junction Block Assembly Connector Terminals
      GTY206200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      IC-14 - Body ground Shaft of parking brake switch is pressed 10 kΩ or higher
      IC-14 - Body ground Shaft of parking brake switch is not pressed Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → PROCEED TO  PROBLEM SYMPTOMS TABLE  NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
