Removal (To 12/2010): Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT RH  . Refer to REMOVAL - Step 3
  2. REMOVE SEAT TRACK BRACKET COVER INNER FRONT RH  . Refer to REMOVAL - Step 4
  3. REMOVE FRONT SEAT TRACK COVER RH REAR OUTER  . Refer to REMOVAL - Step 5
  4. REMOVE SEAT TRACK BRACKET COVER INNER RH  . Refer to REMOVAL - Step 6
  5. REMOVE FRONT RH SEAT ASSEMBLY  . Refer to REMOVAL - Step 7
  6. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY
    1. Disconnect each connector.

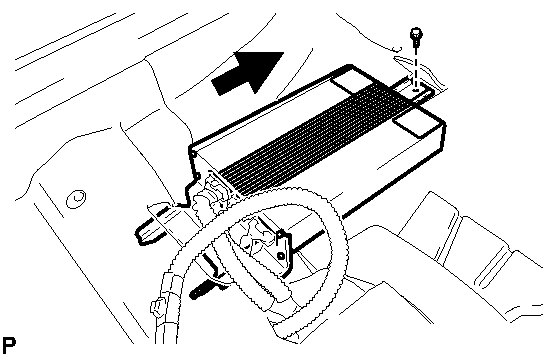

      Fig 1: Removing Stereo Component Amplifier Assembly
      GTY298524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and stereo component amplifier assembly as shown in the illustration.
