REMOVAL (To 12/2010): Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Remove the instrument panel safety pad sub-assembly. Refer to REMOVAL .
  2. REMOVE NO. 1 HEATER TO REGISTER DUCT  . Refer to DISASSEMBLY - Step 2
  3. REMOVE NO. 3 HEATER TO REGISTER DUCT  . Refer to DISASSEMBLY - Step 3
  4. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT  . Refer to DISASSEMBLY - Step 4
  5. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT  . Refer to DISASSEMBLY - Step 5
  6. REMOVE DEFROSTER NOZZLE ASSEMBLY  . Refer to DISASSEMBLY - Step 6
  7. REMOVE NAVIGATION ANTENNA ASSEMBLY
    1. Disconnect the connector.

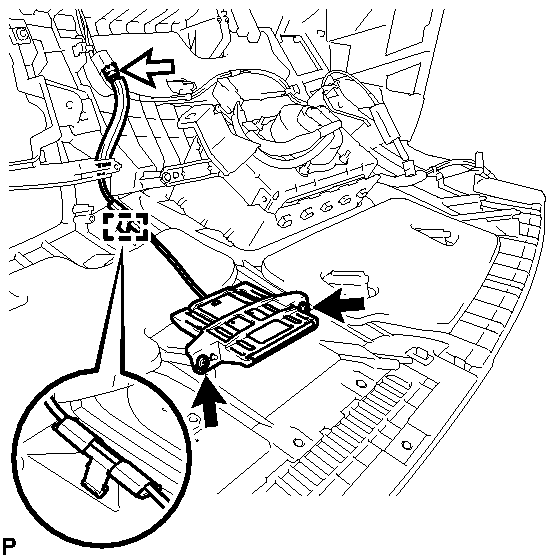

      Fig 1: Locate Navigation Antenna Assembly Connector
      GTY298169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 2 screws and remove the navigation antenna assembly.
