Rear Door UNLOCK Detection Switch RH Circuit: Procedure

1. Connect Techstream to the DLC3.
2. Turn the ignition switch on (IG).
3. Turn the tester on.
4. Enter the following menus: Body Electrical / Main Body / Data List.
5. Read the Data List according to the display on the tester.
   MAIN BODY:



   Tester Display	Measurement Item /Range	Normal Condition	Diagnostic Note
   Rear Lock Position SW	Door unlock detection switch signal / ON or OFF	ON: Door is unlocked OFF: Door is locked	-

   OK

   On the tester screen, each item changes between ON and OFF according to the chart above.

NG → See step   2

OK → PROCEED TO  PROBLEM SYMPTOMS TABLE   NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

1. Remove the rear door lock assembly RH.

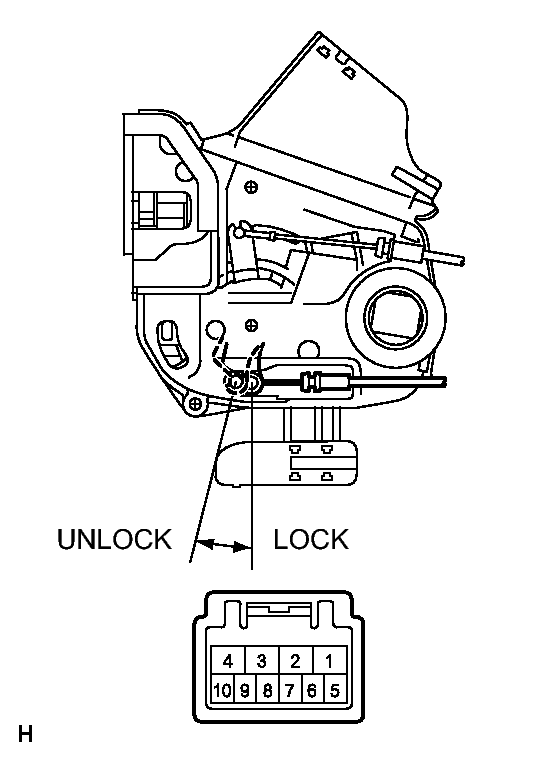

   Fig 1: Inspecting Rear Door Lock Assembly RH & Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance of the door unlock detection switch.

   Resistance

   Tester Connection	Door Lock Condition	Specified Condition
   Battery positive (+) → Terminal 1 Battery negative (-) → Terminal 4	ON (Door lock set to UNLOCK)	6 - 9 (Below 1 Ω)
   Battery positive (+) → Terminal 4 Battery negative (-) → Terminal 1	OFF (Door lock set to LOCK)	6 - 9 (10 kΩ or higher)

NG → REPLACE REAR DOOR LOCK ASSEMBLY RH

OK: Go to next step

1. Disconnect the D6 and I5 connectors.

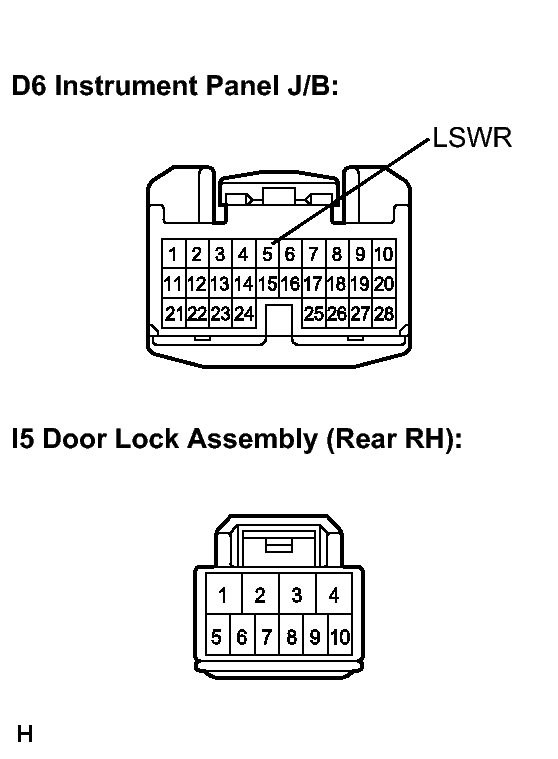

   Fig 2: Identifying Rear Door Lock RH And Instrument Panel J/B Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance of the wire harness side connectors.

   Resistance

   Tester Connection	Condition	Specified Condition
   D6-5 (LSWR) - I5-6	Always	Below 1 Ω
   I5-9 - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → PROCEED TO  PROBLEM SYMPTOMS TABLE   NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
