Illumination Circuit (TO 12/2010): Procedure

1. Check if the illumination for the radio receiver assembly, steering pad switch assembly, heater control switch or others (hazard switch, transmission control switch, etc.) comes on when the light control switch is turned to the head or tail position.

   Result

   Condition	Proceed to
   Illumination comes on for all components except steering pad switch assembly.	A
   Illumination comes on for all components except radio receiver assembly.	B
   No illumination comes on (radio receiver assembly, hazard switch, heater control switch, etc.).	C

B → See step   7

C → See step   9

A: Go to next step

1. Disconnect the spiral cable sub-assembly connector.

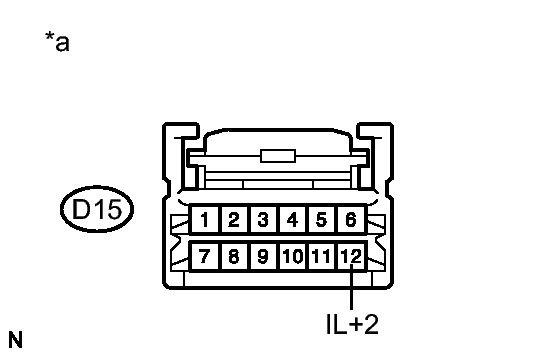

   Fig 1: Identifying Spiral Cable Sub-Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   D15-12 (IL+2) - Body ground	Light control switch at tail or head	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Spiral Cable Sub-assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the steering pad switch assembly connector.
2. Connect a battery positive (+) lead to terminal IL+2 and a negative (-) lead to terminal EAU of the steering pad switch assembly connector.

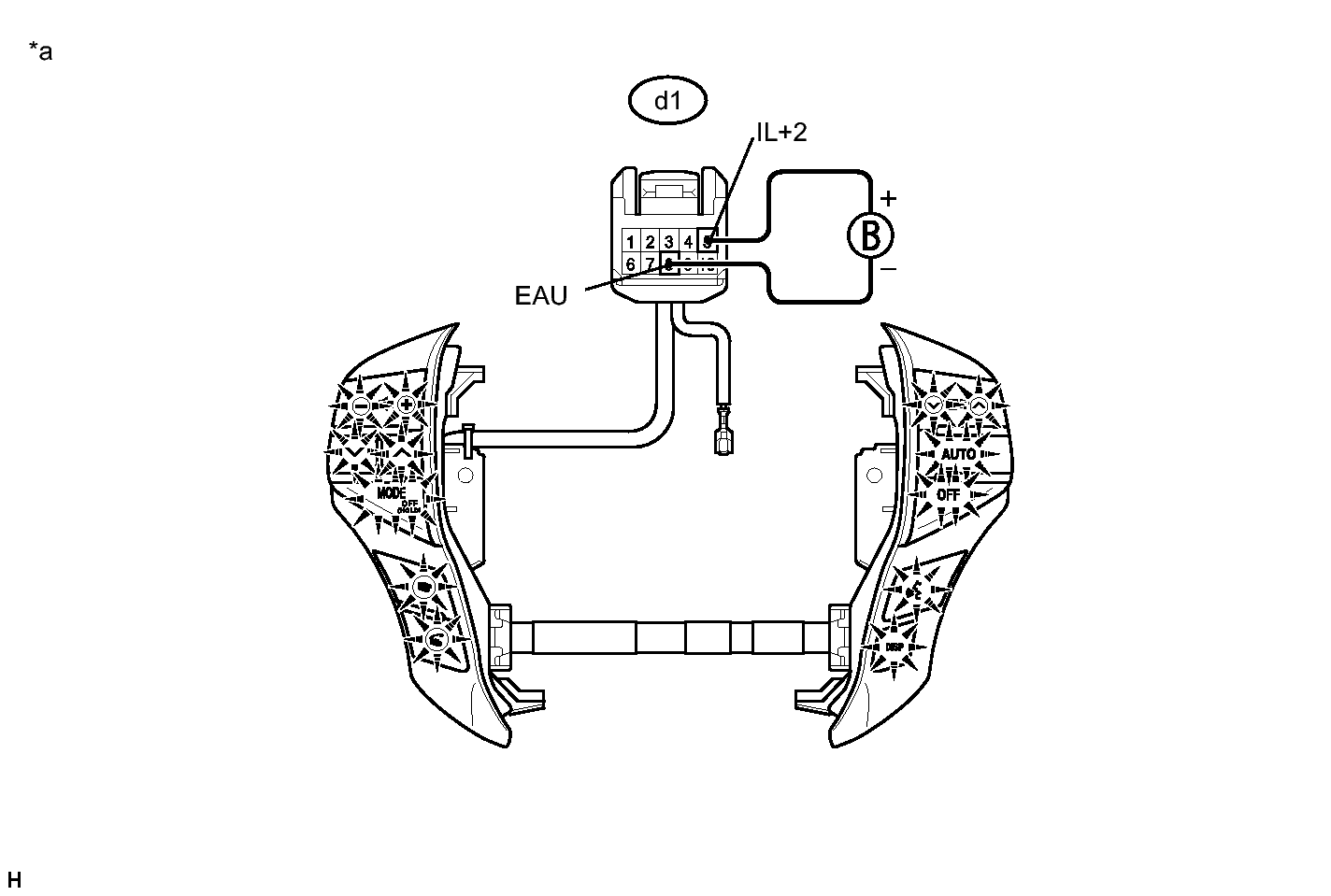

   Fig 2: Identifying Steering Pad Switch Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check if the illumination for the steering pad switch assembly comes on.

   OK

   Illumination for the steering pad switch assembly comes on.

   TEXT IN ILLUSTRATION



   *a

   Component without harness connected (Steering Pad Switch Assembly)

   -

   -

NG → See step   10

OK: Go to next step

1. Disconnect the steering pad switch assembly and spiral cable sub-assembly connectors.

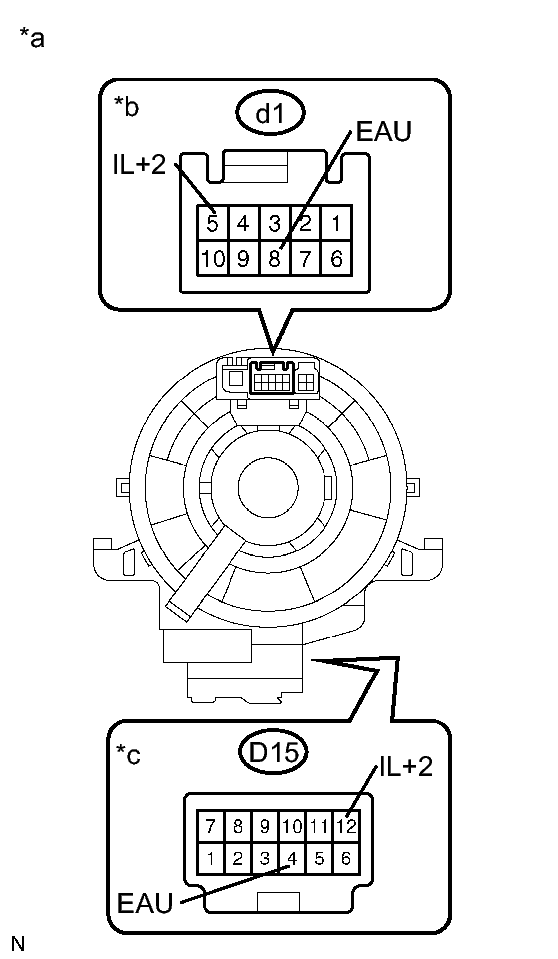

   Fig 3: Identifying Steering Pad Switch Assembly And Spiral Cable Sub-Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   d1-8 (EAU) - D15-4 (EAU)	Center	Below 1 Ω
   	2.5 rotations to the left
   	2.5 rotations to the right
   d1-5 (IL+2) - D15-12 (IL+2)	Center	Below 1 Ω
   	2.5 rotations to the left
   	2.5 rotations to the right

   NOTE:

   The spiral cable sub-assembly is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable sub-assembly may prevent the airbag from deploying. Be sure to read the article shown in the brackets.

   HINT:

   • Removal. Refer to REMOVAL
   • Installation. Refer to INSTALLATION
   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Spiral Cable Sub-assembly)
   *b	Steering Pad Switch Assembly Side
   *c	Vehicle Side

NG → See step   11

OK: Go to next step

1. Disconnect the radio receiver assembly and spiral cable sub-assembly connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E34-6 (SWG) - D15-4 (EAU)	Always	Below 1 Ω
   E34-6 (SWG) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   6

1. Disconnect the radio receiver assembly connector.

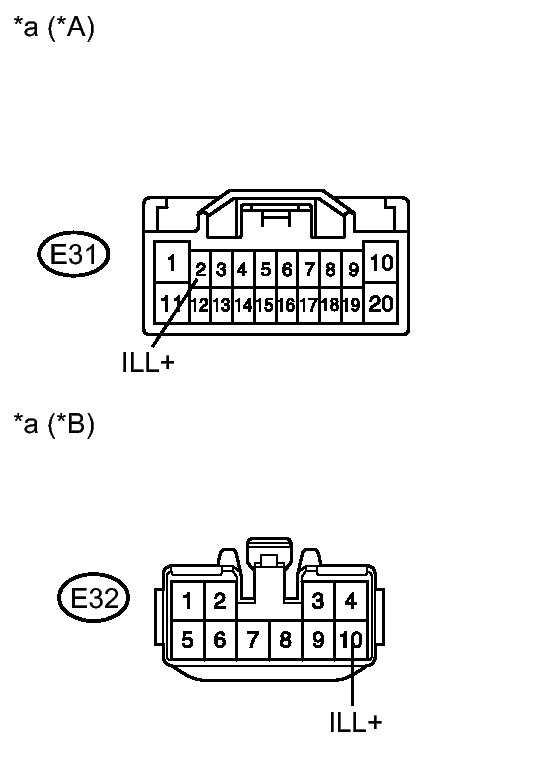

   Fig 4: Identifying Radio Receiver Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   FOR 12 SPEAKERS



   Tester Connection	Condition	Specified Condition
   E31-2 (ILL+) - Body ground	Light control switch tail or head	11 to 14 V

   FOR 9 SPEAKERS



   Tester Connection	Condition	Specified Condition
   E32-10 (ILL+) - Body ground	Light control switch tail or head	11 to 14 V

   TEXT IN ILLUSTRATION



   *A	for 12 Speakers
   *B	for 9 Speakers
   *a	Front view of wire harness connector (to Radio Receiver Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the radio receiver assembly and combination meter assembly connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   FOR 12 SPEAKERS



   Tester Connection	Condition	Specified Condition
   E31-12 (ILL-) - E30-20 (ILL-)	Always	Below 1 Ω
   E30-20 (ILL-) - Body ground	Always	10 kΩ or higher

   FOR 9 SPEAKERS



   Tester Connection	Condition	Specified Condition
   E33-5 (ILL-) - E30-20 (ILL-)	Always	Below 1 Ω
   E30-20 (ILL-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   6
