Fuel Pressure Regulator: Components
WARNING:
This page is about a different variant/trim than selected.

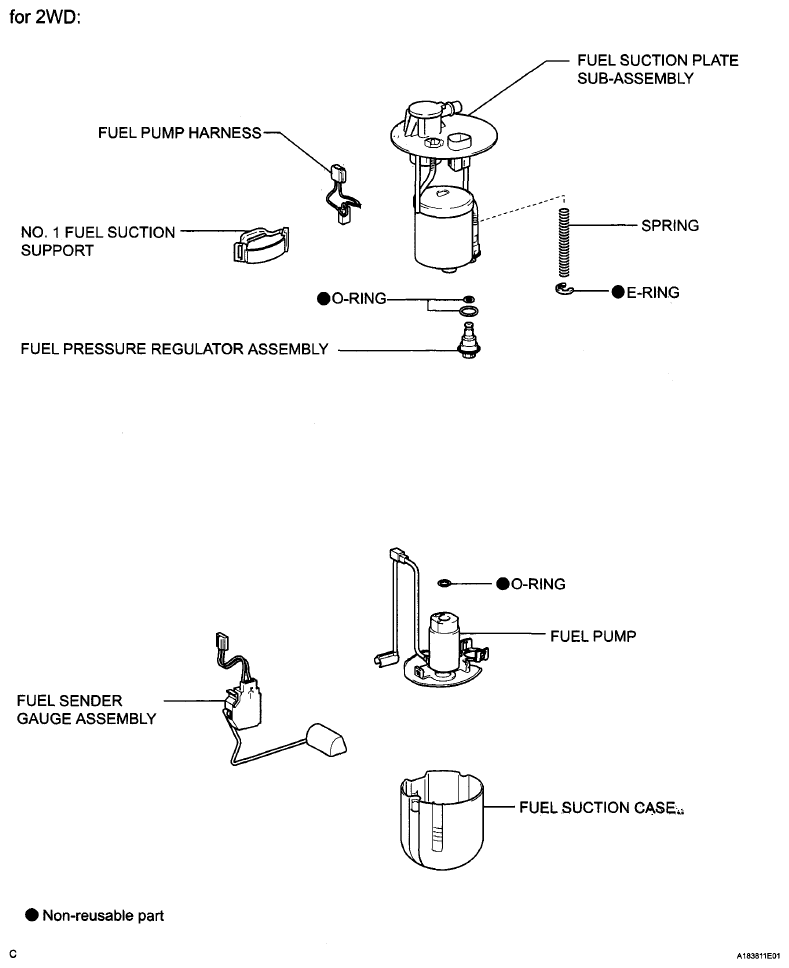

Fig 1: Identifying Fuel Pressure Regulator Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

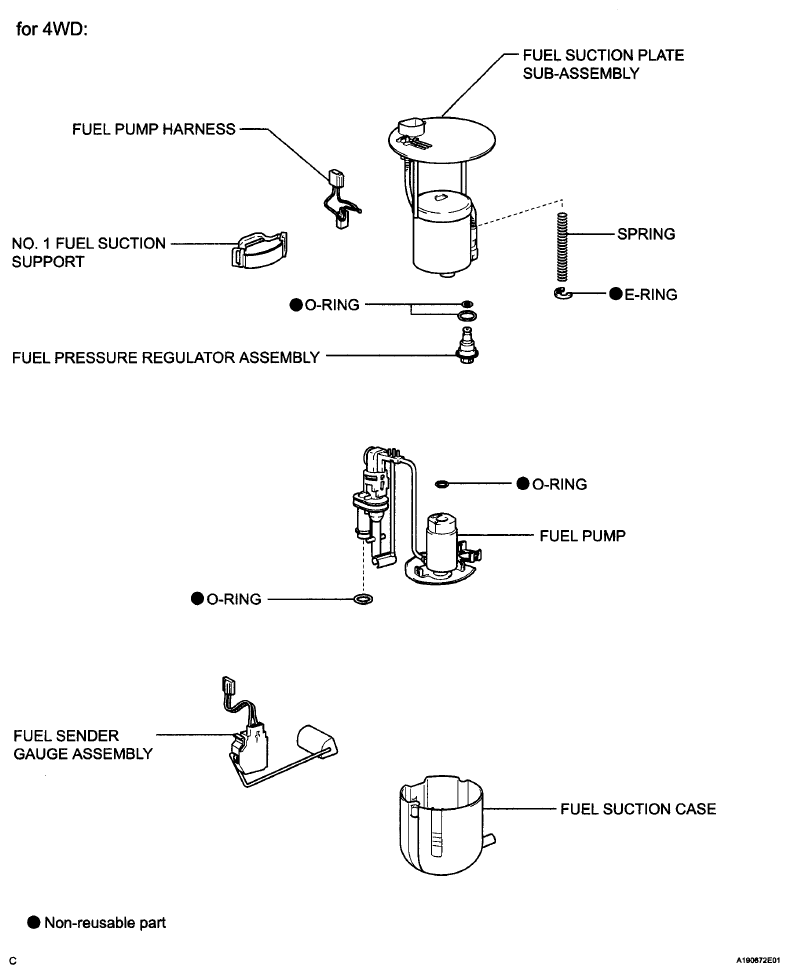

Fig 2: Identifying Fuel Pressure Regulator Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
