Fuel Pump: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Fuel Pump Components (1 Of 5)
G06041869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

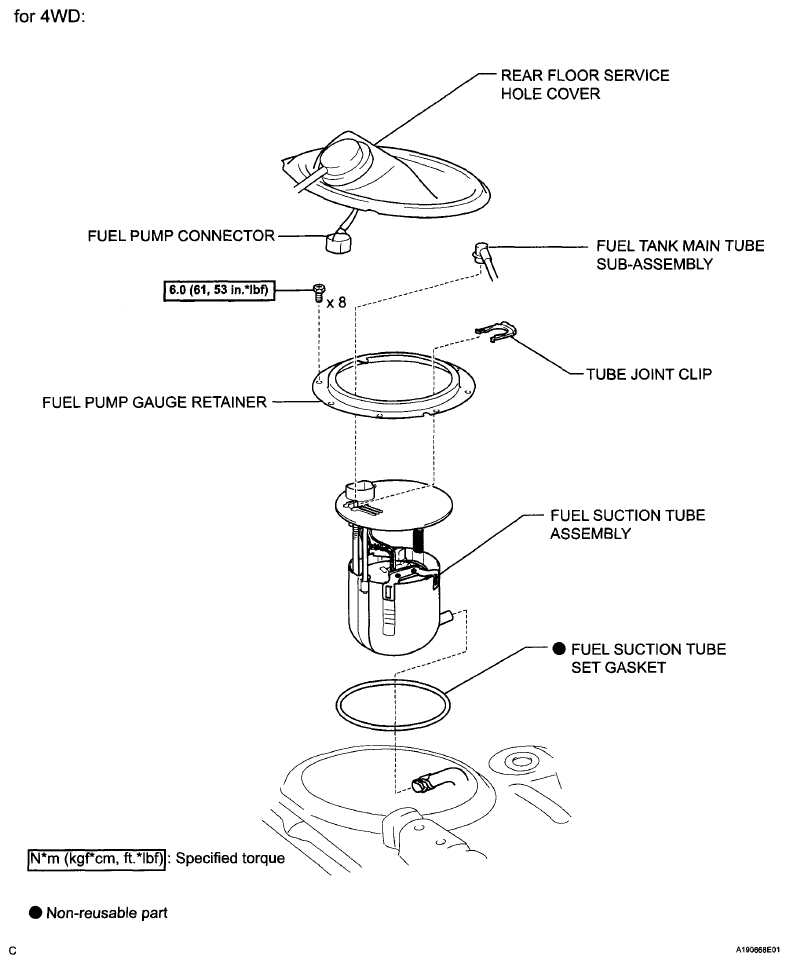

Fig 2: Fuel Pump Replacement Components With Torque Specifications (2 Of 5)
G06041870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Fuel Pump Components (3 Of 5)
G06041871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

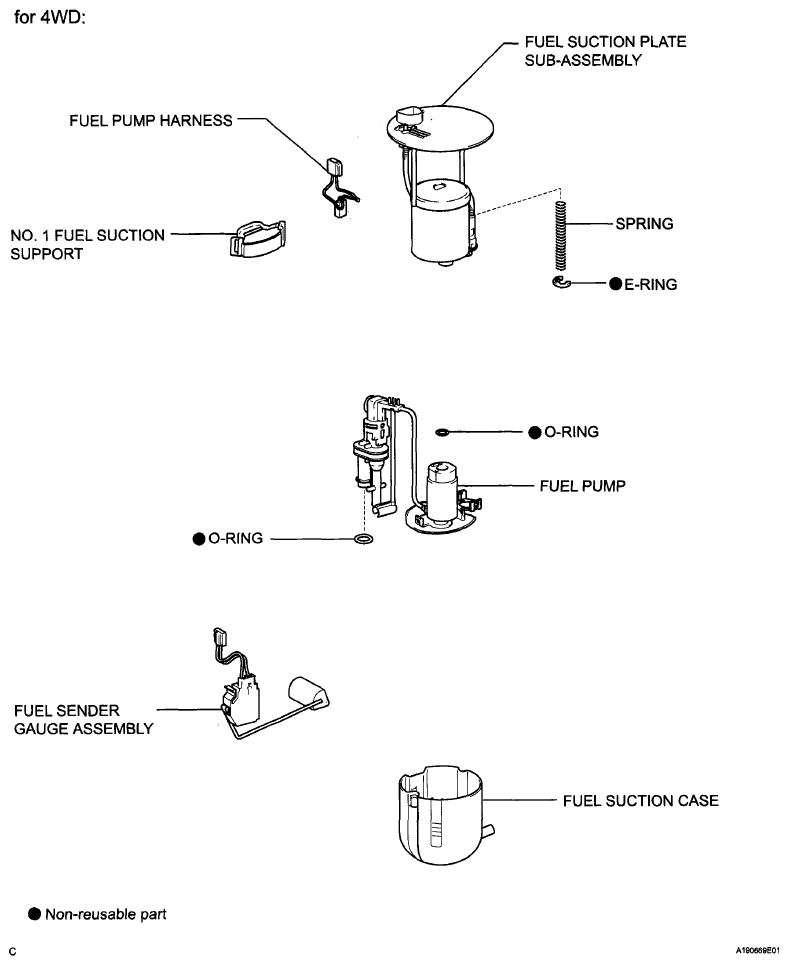

Fig 4: Identifying Fuel Pump Components (4 Of 5)
G06041872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

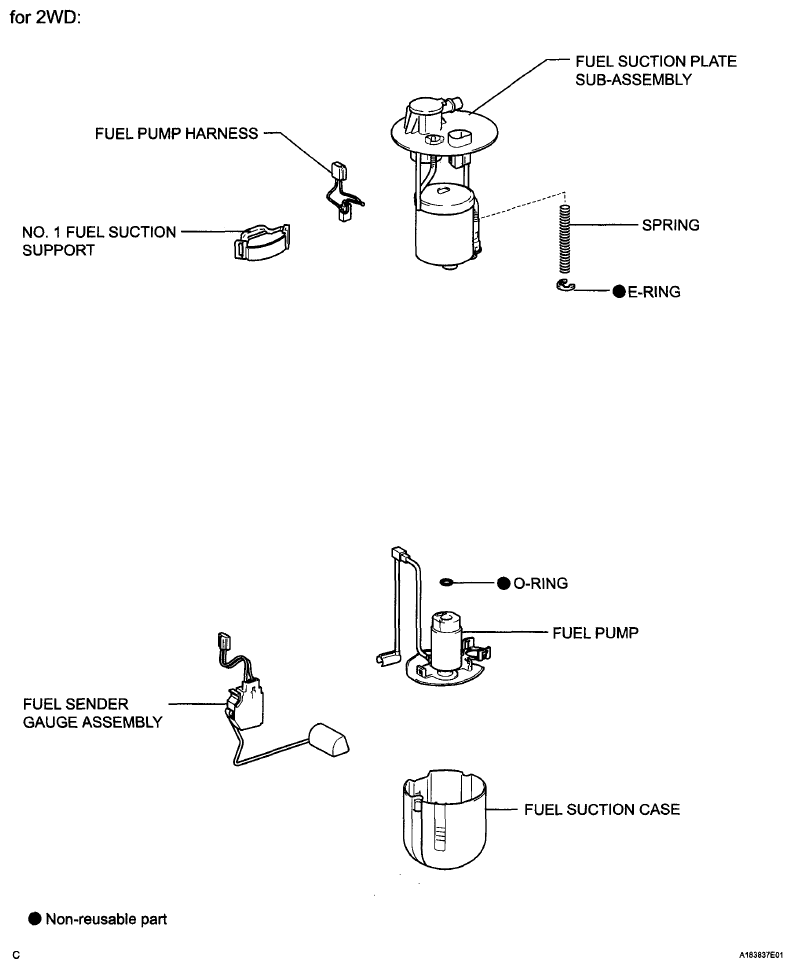

Fig 5: Identifying Fuel Pump Components (5 Of 5)
G06041873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
