Fuel Sender Gauge Assembly: Components

WARNING: This page is about a different variant/trim than selected.

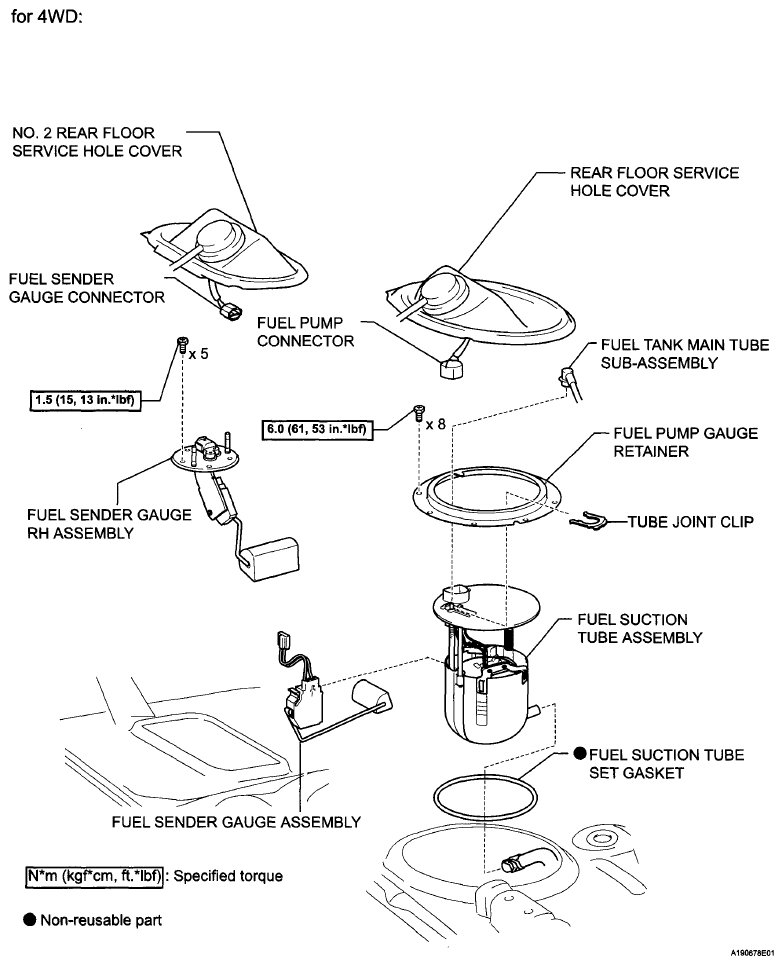

Fig 1: Fuel Sender Gauge Assembly Replacement Components With Torque Specifications (1 Of 2)
G06041975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

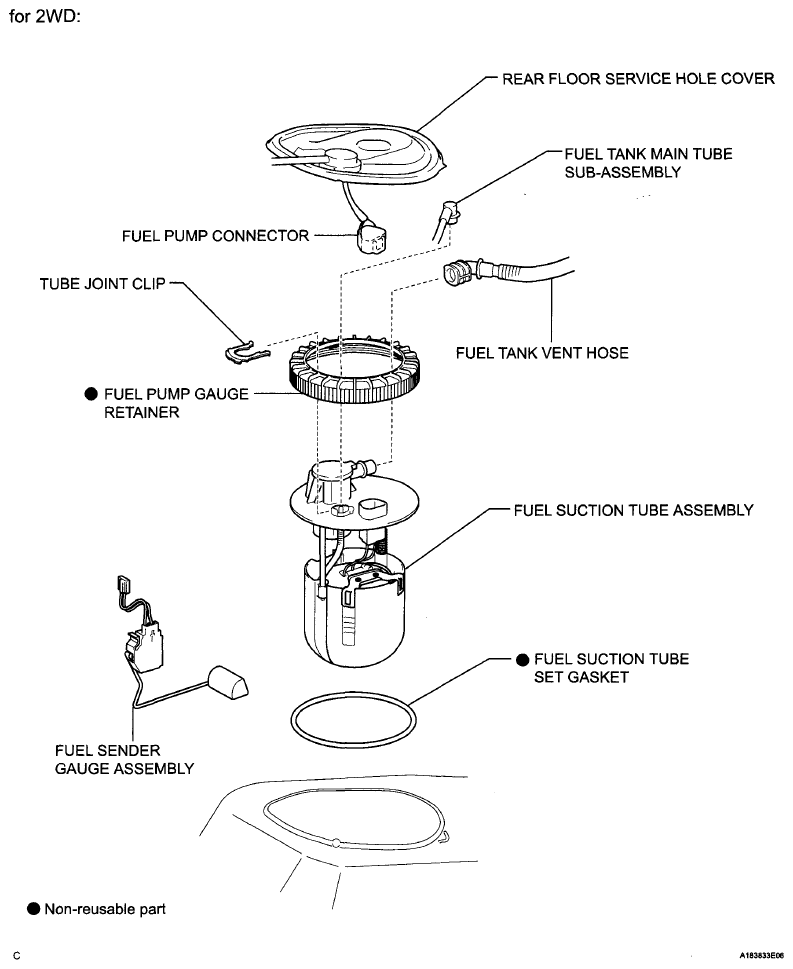

Fig 2: Identifying Fuel Sender Gauge Assembly Components (2 Of 2)
G06041976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
