Fuel Sender Gauge Assembly: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL FUEL SENDER GAUGE RH ASSEMBLY (for 4WD)
1. Install the fuel sender gauge RH assembly to the fuel tank with the 5 bolts.
  Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

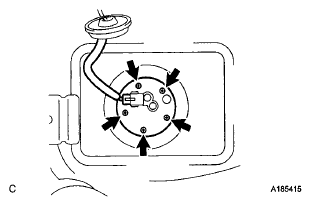

  Fig 1: Locating Fuel Sender Gauge And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the fuel sender gauge connector.

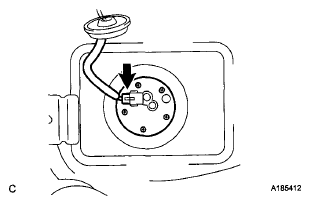

Fig 2: Locating Fuel Sender Gauge Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SENDER GAUGE ASSEMBLY (for 4WD)
1. Install the fuel sender gauge assembly by sliding it downward.
  NOTE: Do not damage the wire harness.
2. Connect the connector of the fuel sender gauge assembly.
  NOTE: Make sure that the fuel sender gauge arm does not bend.

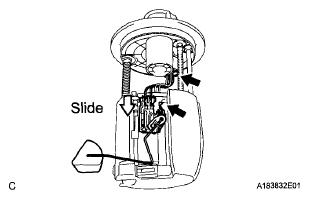

  Fig 3: Identifying Fuel Sender Gauge Assembly (4WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SENDER GAUGE ASSEMBLY (for 2WD)
1. Install the fuel sender gauge assembly by sliding it downward.
  NOTE: Do not damage the wire harness.
2. Connect the connector of the fuel sender gauge assembly.
  NOTE: Make sure that the fuel sender gauge arm does not bend.

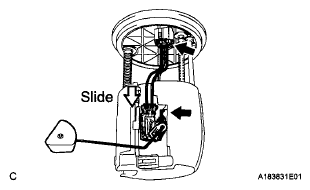

  Fig 4: Identifying Fuel Sender Gauge Assembly (2WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SUCTION TUBE ASSEMBLY
1. Install the fuel suction tube assembly to the fuel tank assembly (See INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT FOR FUEL LEAK (See ON-VEHICLE INSPECTION )
INSTALL NO. 2 REAR FLOOR SERVICE HOLE COVER (for 4WD)
1. Install the No. 2 rear floor service hole cover.

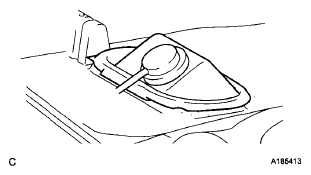

Fig 5: Identifying No. 2 Rear Floor Service Hole Cover (4WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
