EXHAUST PIPE AND CATALYTIC CONVERTER (for 2WD): Components

WARNING: This page is about a different variant/trim than selected.

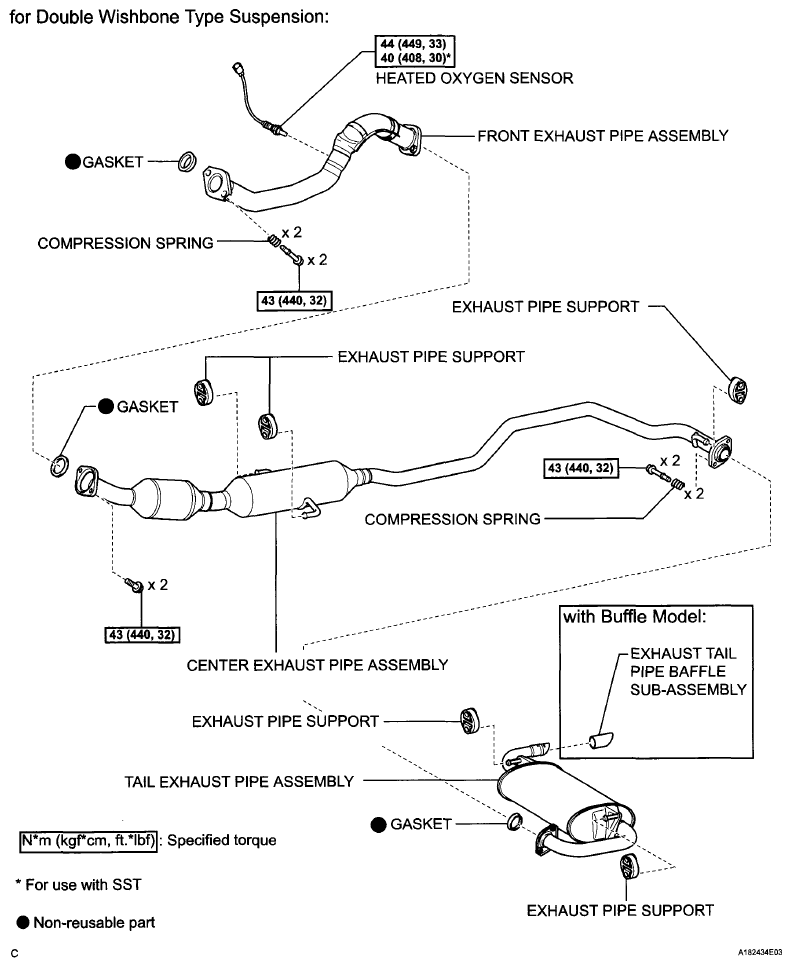

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications - Double Wishbone Type Suspension (For 2WD)
G06042566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

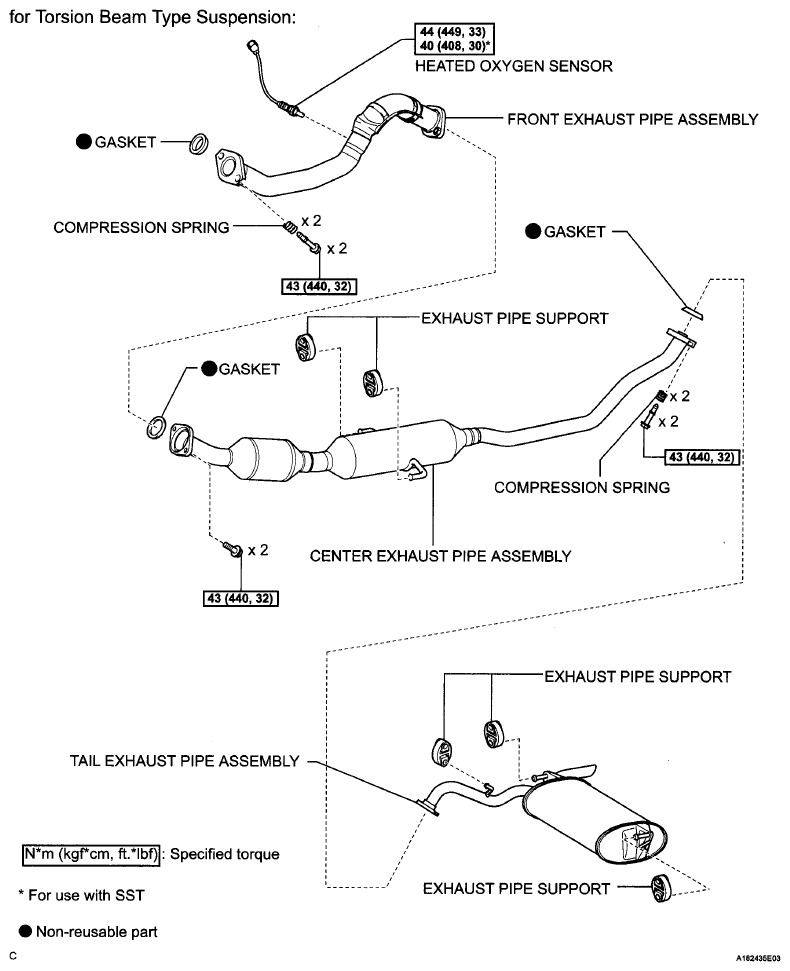

Fig 2: Exhaust Pipe Replacement Components Torque Specifications - Torsion Beam Type Suspension (For 2WD)
G06042567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
