Intake Manifold: Removal

WARNING: This page is about a different variant/trim than selected.

DISCHARGE FUEL SYSTEM PRESSURE
(See FUEL SYSTEM )
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
REMOVE FRONT WIPER ARM HEAD CAP (See REMOVAL )
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH (See REMOVAL )
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH (See REMOVAL )
REMOVE HOOD TO COWL TOP SEAL (See REMOVAL )
REMOVE COWL TOP VENTILATOR LOUVER RH (See REMOVAL )
REMOVE COWL TOP VENTILATOR LOUVER LH (See REMOVAL )
REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY (See REMOVAL )
REMOVE OUTER COWL TOP PANEL (See REMOVAL )
REMOVE SUSPENSION TOWER DAMPER ASSEMBLY (w/ Front Strut Bar) (See REMOVAL )
REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY (See REMOVAL )
DRAIN ENGINE COOLANT (See COOLANT )
REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE (See REMOVAL )
REMOVE THROTTLE BODY ASSEMBLY (See REMOVAL )
DISCONNECT FUEL MAIN TUBE (See REMOVAL )
DISCONNECT NO. 2 VENTILATION HOSE (See REMOVAL )
REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY (See REMOVAL )
REMOVE INTAKE MANIFOLD
1. Disconnect the union to connector tube hose from the No. 2 hose to hose tube.
2. Disconnect the camshaft timing oil control valve connector.
3. Remove the wire harness clamp.
4. Remove the union to connector tube hose from the vacuum hose clamp.

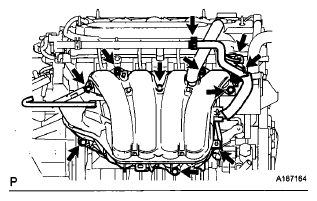

  Fig 1: Identifying Intake Manifold Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 5 bolts, 2 nuts and intake manifold.
6. Remove the gasket from the intake manifold.

  Fig 2: Identifying Intake Manifold Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
